A10 Series

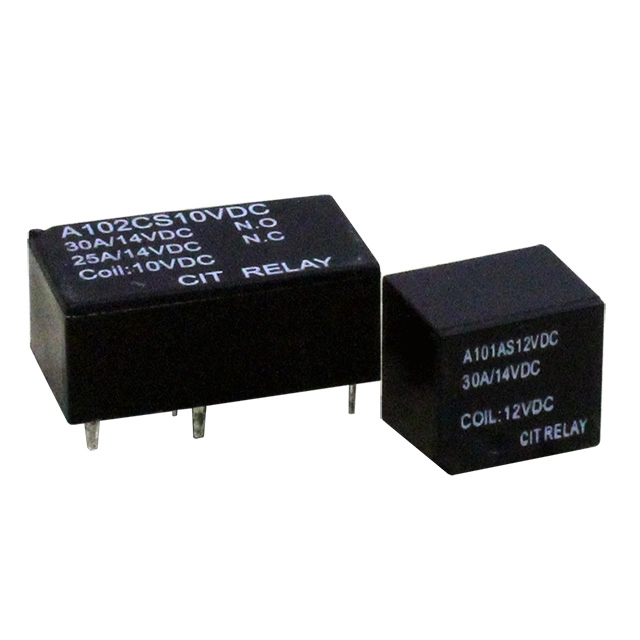

The A10 Series automotive relay is available in a dual relay package. Ultra light weight and with switching capacity up to 30A, the A10 withstands high temperature. PC pin mounting, coil voltage ranges from 5VDC up to 24VDC with coil power of .55W. Contact arrangement options are 1A, 1C, 2A or 2C. Dimensions are 12.0 (23.8) x 12.9 x 9.9mm.
Features
Switching Capacity up to 30A, Dual Relay Available, Withstands High Temperature, PC Pin Mounting, Ultra Light Weight
Specification
Contact Rating
1A, 2A: 25A@14VDC, 30A@14VDC; 1C, 2C: 25A@14VDC NO, 30A@14VDC NO, 20A@14VDC NC, 25A@14VDC NC
Contact Forms
1A, 1C, 2A, 2C
Coil Voltage
5VDC, 9VDC, 10VDC, 12VDC, 24VDC
Coil Power
.55W, .57W
Mounting Methods
PC Pin

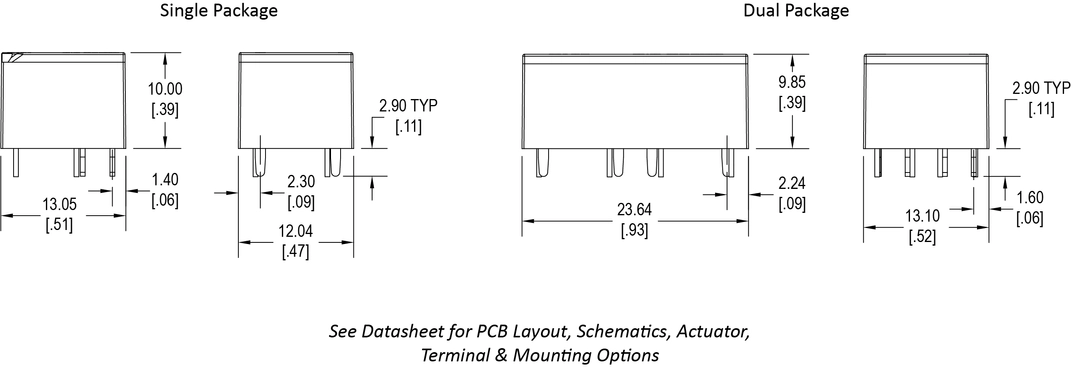

Dimensional Drawing
