A2K Series

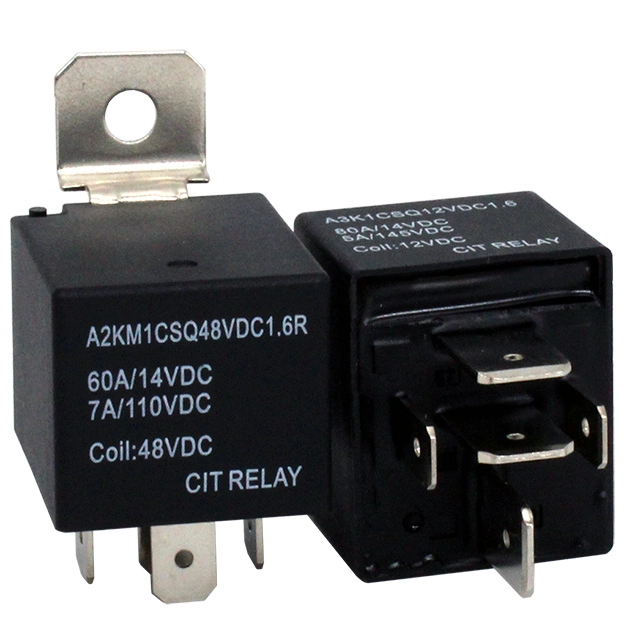

Along with a mounting bracket option, the A2K Series Automotive Relay offers an internal blowout magnet. Large switching capacity up to 60A with coil voltage of 12VDC, 24VDC OR 48VDC. Coil power is 1.6W with contact ratings of 1A or 1C, with or without diode and resistor. The A2 Series dimensions are 26.5 x 32.0 x 33.5mm.
Features
ISO Sized Automotive Relay, Internal Blowout Magnets, Capable of Switching up to 110VDC, Suitable for DC Motor and Lamp Control, PCB Pin and Quick Connect Mounting Options
Specification
Contact Rating
1A, 1C: 60A@14VDC, 25A@36VDC, 20A@48VDC, 15A@72VDC, 10A@90VDC, 7A@110VDC
Contact Forms
1A, 1C
Coil Voltage
12VDC, 24VDC, 48VDC
Coil Power
1.6W
Mounting Methods
PC Pin, Quick Connect
Dimensional Drawing
