A5 Series

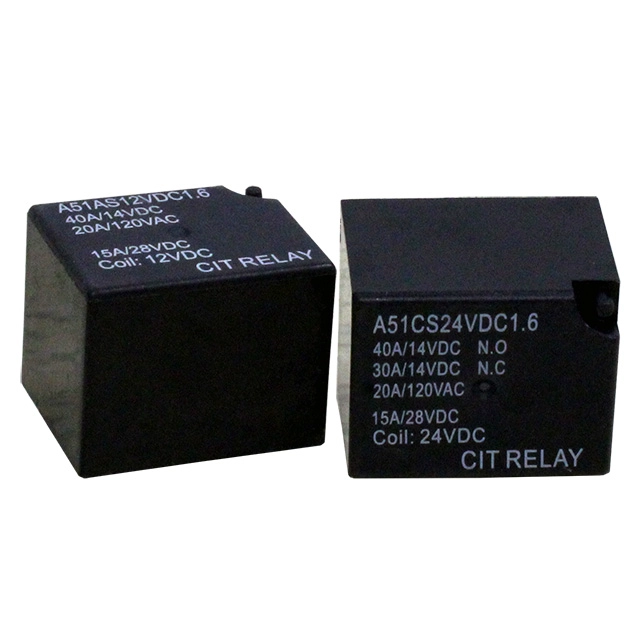

The A5 Series automotive relay offers switching capacity up to 40A while light weight and small in size. Contact arrangement options are 1A, 1B or 1C. Coil voltage options range from 9VDC up to 24VDC with coil power choices of 1.6W or 1.9W. Dimensions are 25.8 x 20.5 x 20.5mm. The A5 Series is suitable for automotive and lamp accessories.
Features
Switching Capacity up to 40A, Light Weight and Small Size, Suitable for Automotive and Lamp Accessories, Two Footprint Styles Available
Specification
Contact Rating
1A: 40A@14VDC, 20A@120VAC, 15A@28VDC; 1B: 30A@14VDC, 20A@120VAC, 15A@28VDC; 1C: 40A@14VDC, 30A@14VDC, 20A@120VAC, 15A@28VDC
Contact Forms
1A, 1B, 1C
Coil Voltage
9VDC, 12VDC, 24VDC
Coil Power
1.6W, 1.9W
Mounting Methods
PC Pin

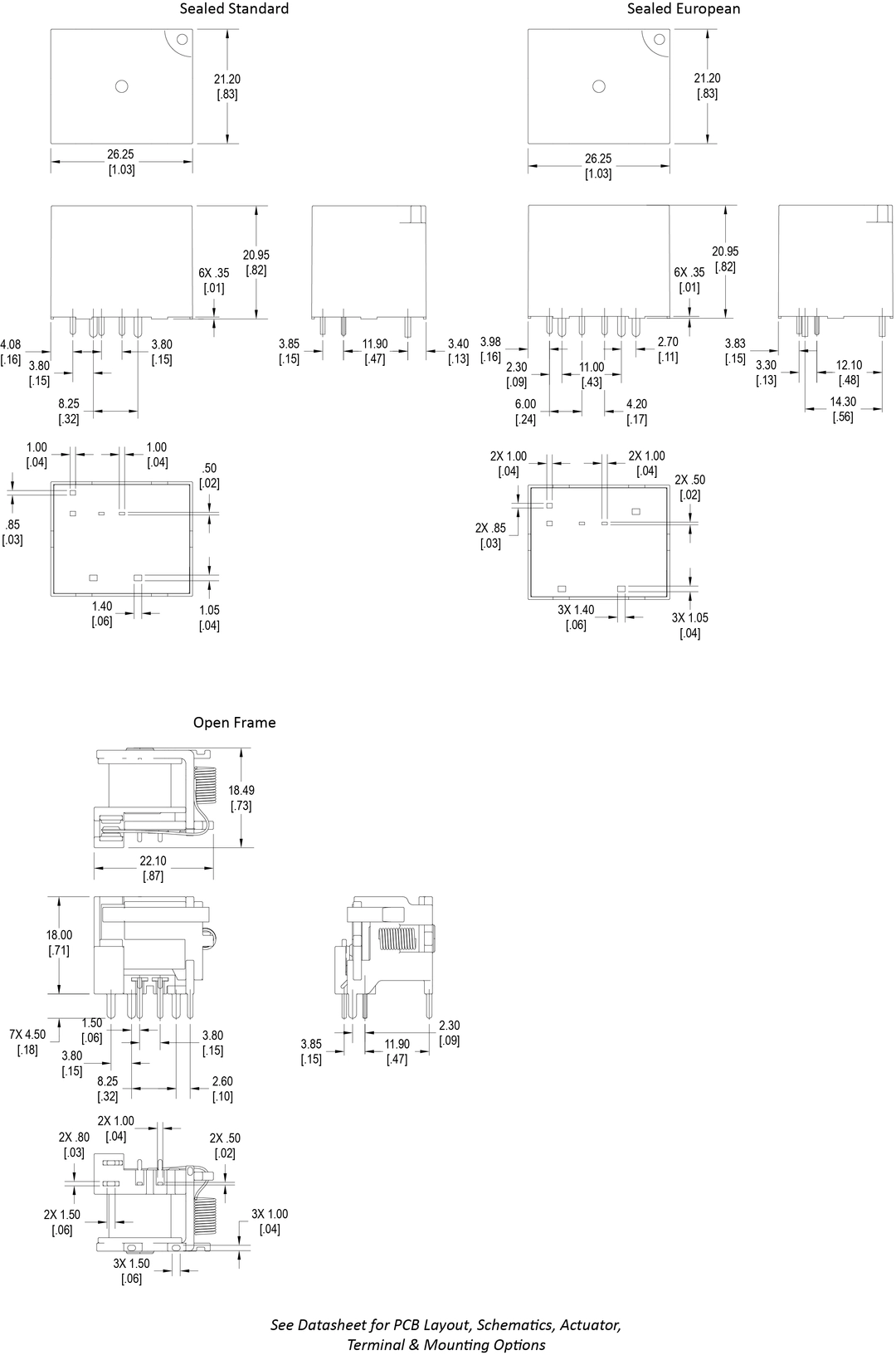

Dimensional Drawing
