CR1104S Series

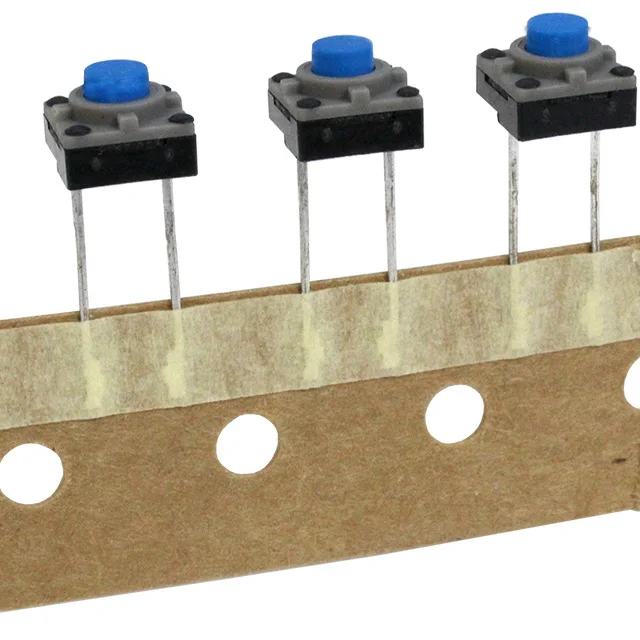

The CR1104S Series tactile switch is in ammo packaging for ease of use. This IP67 process sealed switch offers packaging in three different quantities. Actuation force choices are 200gF and 260gF with actuator travel of .30 ± .2mm. Actuator length options range from 4.3mm to 7.0mm.
Features
Through-Hole Tactile, Ammo Pack
Specification
Electrical Ratings
50mA@50VDC
Sealing Degree
Process Sealed
Number Of Poles
SPST
Latching Option
Momentary
Terminal Options
Through-Hole Radial Pack

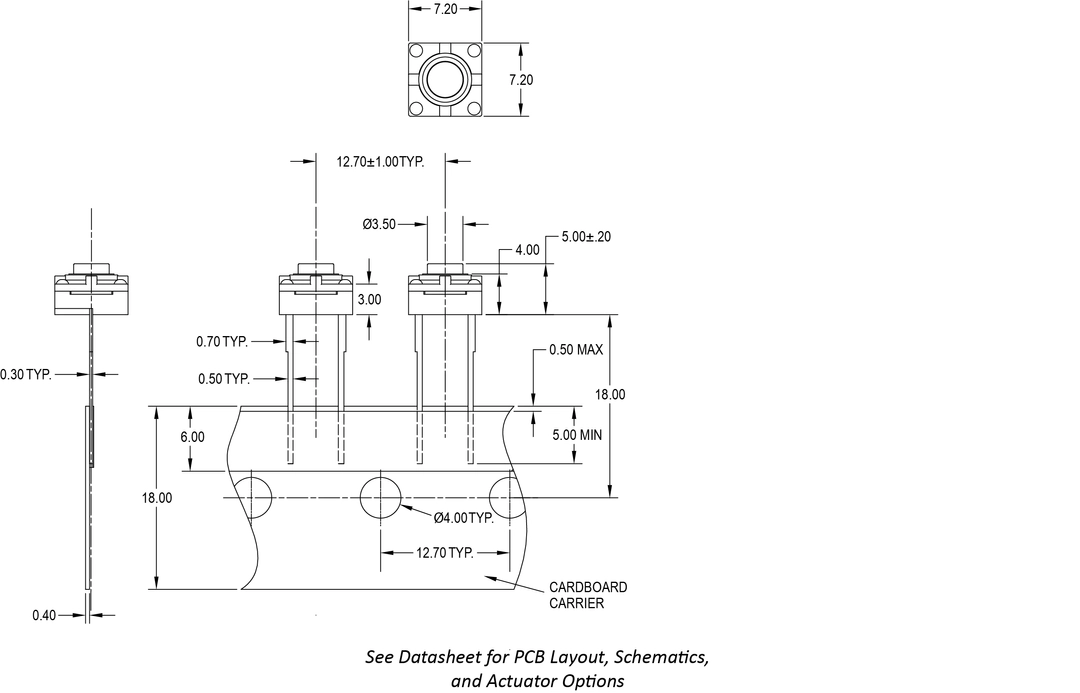

Dimensional Drawing
