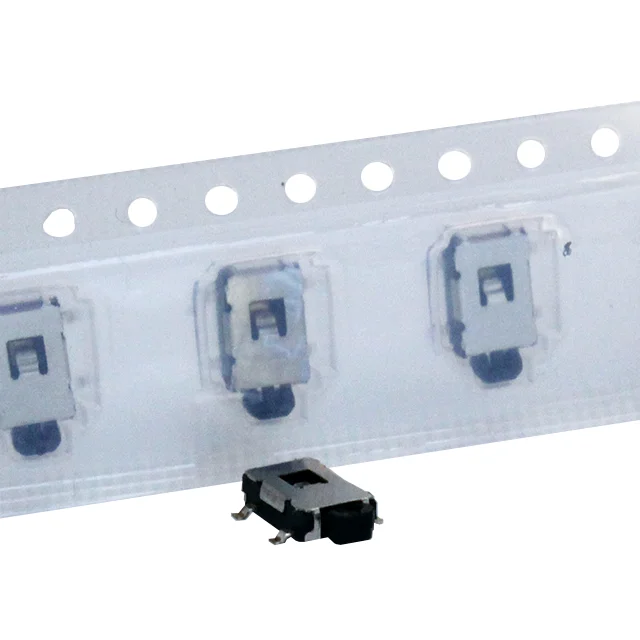

CS1206 Series

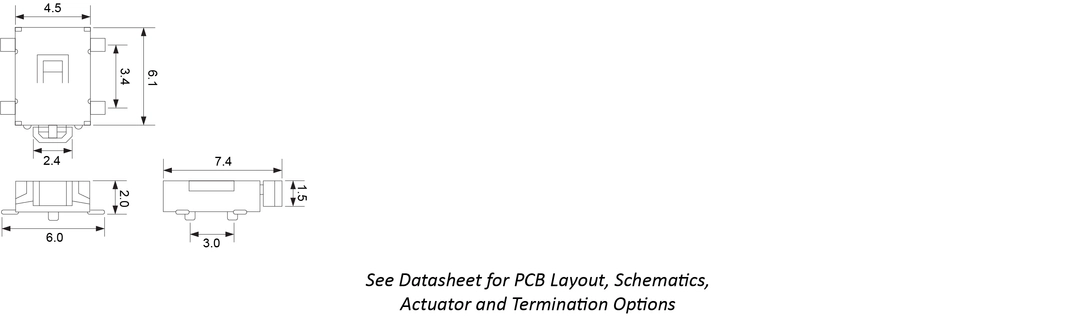

Small in size, the CS1206 is right angle and surface mount, SPST and momentary. Actuation force is 200gF with travel of .30mm. The body size is 4.5mm x 6.1mm with gull wing termination.
