CSP Series

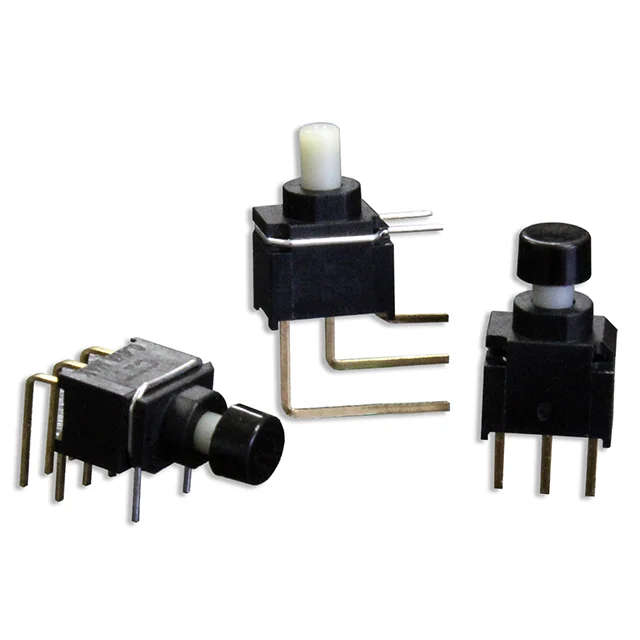

The CSP Series is an IP67 process sealed sub-miniature pushbutton switch offering both single and double pole options with Off-On and On-(On) switch function. With gold plated contacts and 3.30mm non-threaded actuator, the CSP give you several pc pin mounting options.
Features
Sub-Miniature Size, IP67 Process Sealed, Single or Double Pole Option
Specification
Electrical Ratings
.4VA@20VAC or VDC
Sealing Degree
IP67, Process Sealed
Number Of Poles
SPST, SPDT, DPST, DPDT
Latching Option
Momentary
Terminal Options
PC Pin, Horizontal Mount Right Angle PC Pin, Vertical Mount Right Angle PC Pin

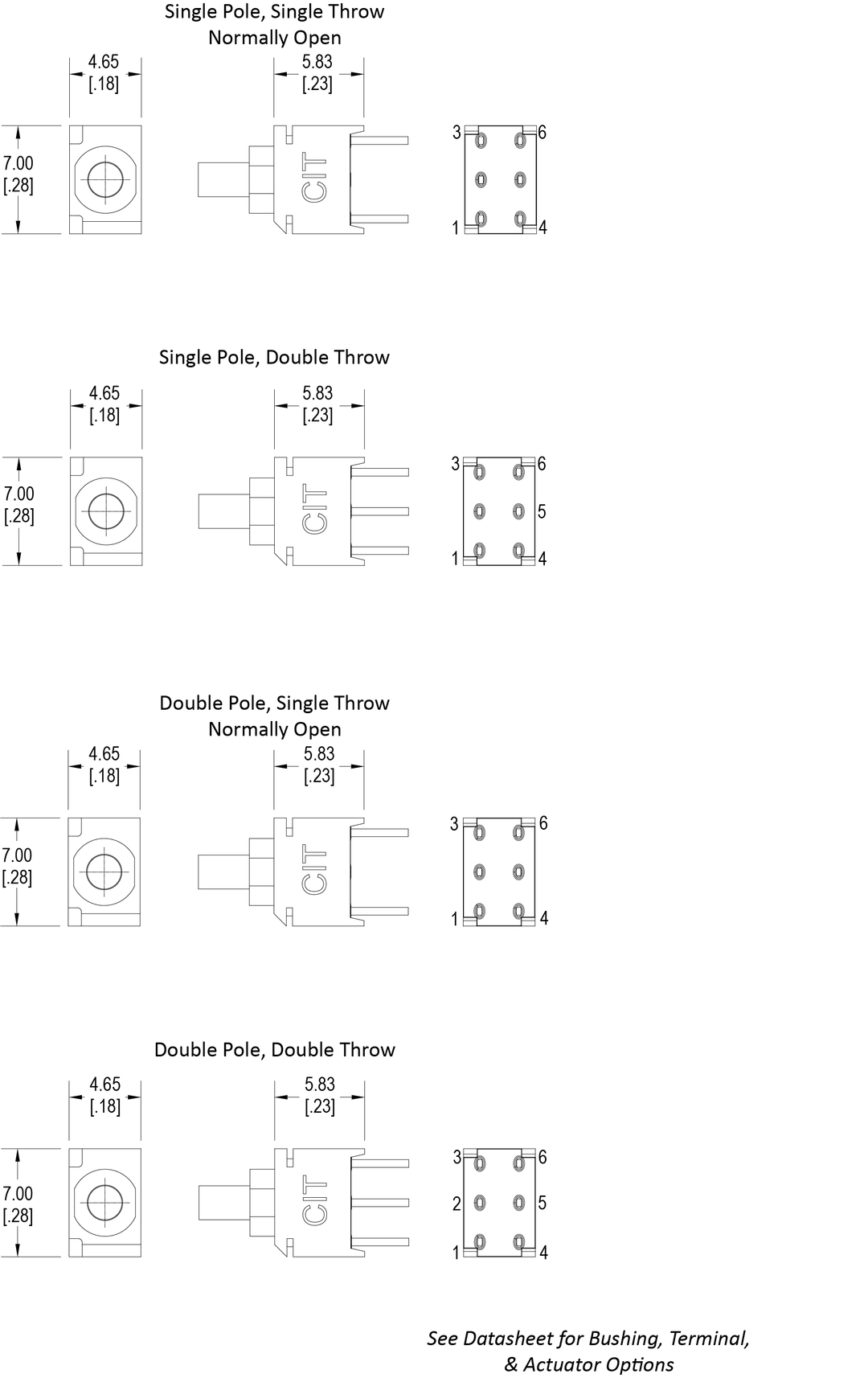

Dimensional Drawing
