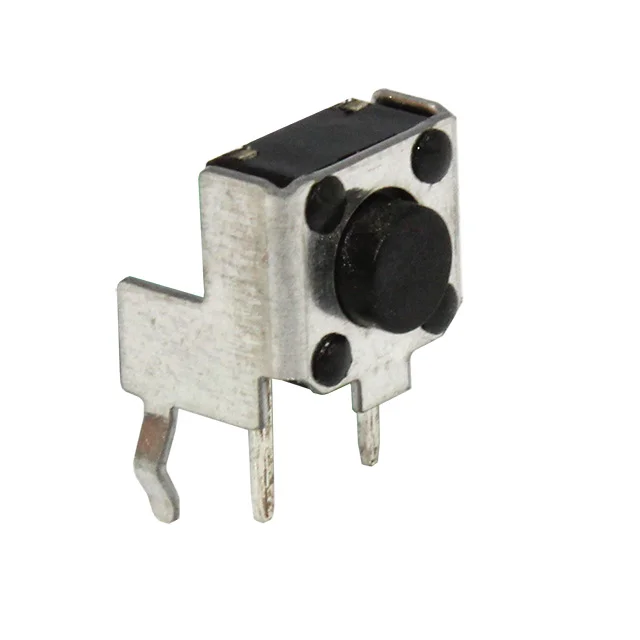

CT1102V Series
The right angle CT1102V series tact switch is SPST and momentary. With through-hole termination, the CT1102V is available with actuator length options from 3.15mm up to 15.85mm with two square head choices. Actuation force options range from 100gF up to 260gF. Also offered are 5 cap options with color choices of white, black, red, and light gray, along with other custom color options.
Features
Right Angle, Through-Hole, Actuator Length Options, Actuation Force Options, Multiple Cap Options
Specification
Electrical Ratings
50mA@50VDC
Number Of Poles
SPST
Latching Option
Momentary
Terminal Options
Right Angle Through-Hole

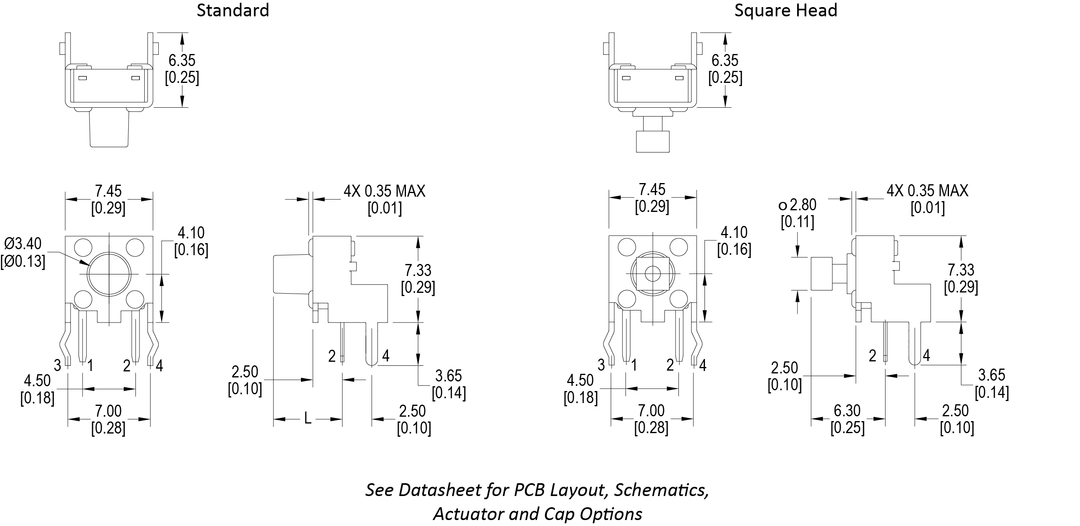

Dimensional Drawing
