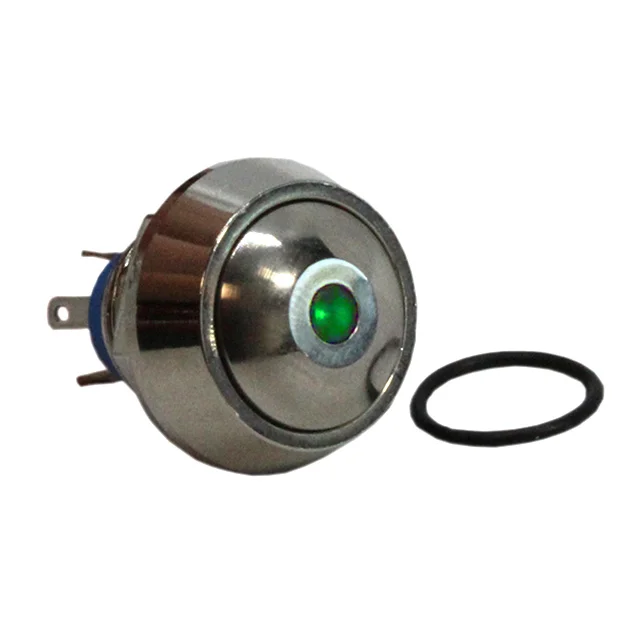

EH Series
12mm in size, the EH Series is a heavy-duty panel mount switch, splash and vandal resistant. Momentary in function, the EH Series is available with screw terminal or solder lug termination. Round body style is available in a choice of brushed stainless steel or black anodized aluminum finish. Cap color options include stainless steel, black, red, yellow, green or blue.
Features
Vandal Proof, Stainless Steal Option, Small Size, IP67 Sealing Degree, Panel Mount
Specification
Electrical Ratings
2A@48VDC
Sealing Degree
IP67, Process Sealed
Number Of Poles
SPST NO
Body Diameter
12mm
Latching Option
Momentary
Terminal Options
Screw Terminals, Solder Lugs
Illumination Options
LED
Dimensional Drawing
