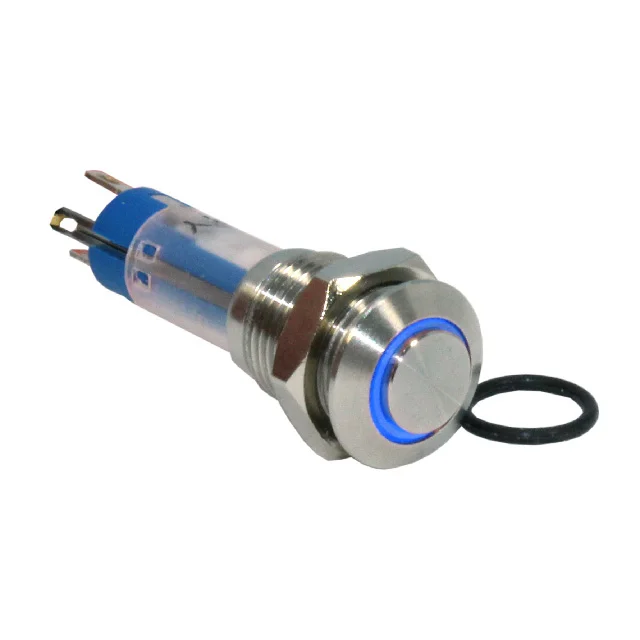

GH Series
The SPST, 10mm GH Series is available in both momentary or latching. Raised actuators offer non-illuminated or ring illumination styles. IP67 sealing degree and electrical rating of 2A @ 48VDC. The GH Series offers brushed stainless steel or anodized aluminum switch finish in black, green, red, blue, or yellow.
Features
10mm, Vandal Proof, IP40 Sealing Degree, Non-Illuminated or Ring Illumination, Panel Mount
Specification
Electrical Ratings
2A@48VDC
Sealing Degree
IP40, Dust Proof
Number Of Poles
SPST
Body Diameter
10mm
Latching Option
Momentary, Latching
Terminal Options
Solder Lug
Illumination Options
LED
Dimensional Drawing
