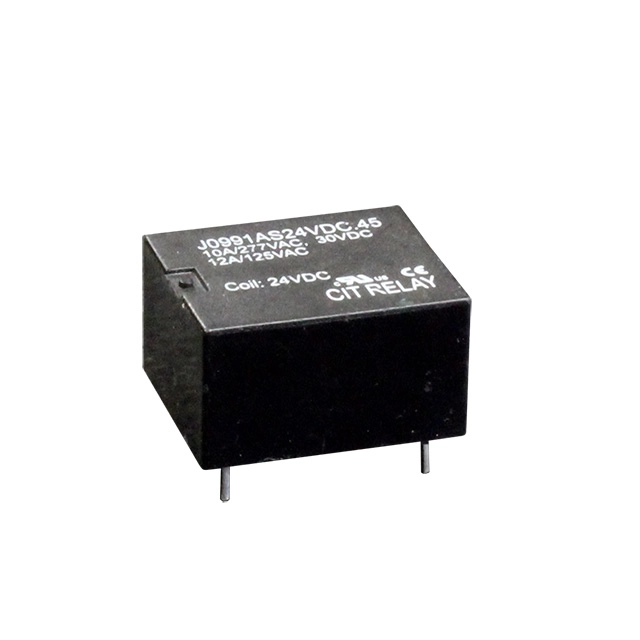

J099 Series
Highly sensitive and light weight, the J099 Series relay offers switching current up to 12A. Contact arrangement is 1A with a choice of 12VDC or 24VDC coil voltage and .45W coil power. PC pin mounting standard. UL Agency approval is E197851.
Features
Highly Sensitive, Light Weight, Switching Current up to 12A, PC Board Mounting
Specification
Contact Rating
10A@277VAC General Purpose, 10A@30VDC General Purpose, 12A@125VAC Resistive
Contact Forms
1A
Coil Voltage
5VDC, 12VDC, 24VDC
Coil Power
.45W
Mounting Methods
PC Pin
Agency Approvals
UL E197851

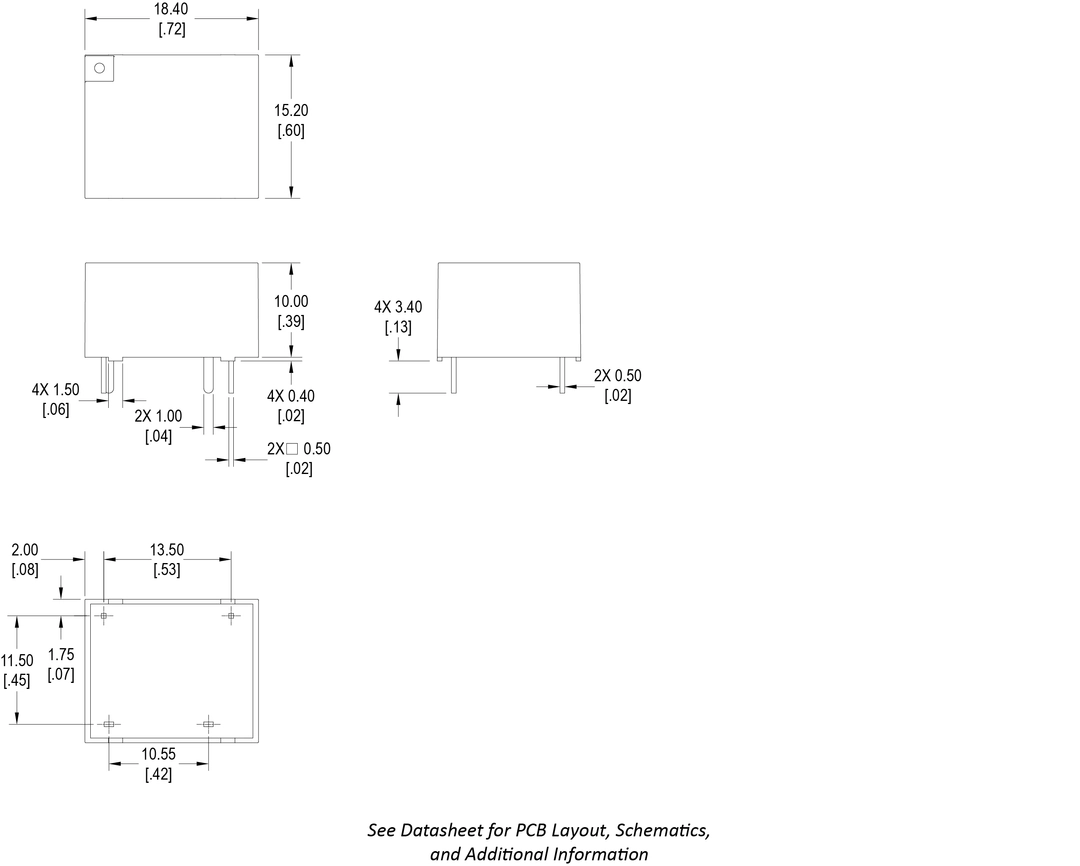

Dimensional Drawing
