MS2310

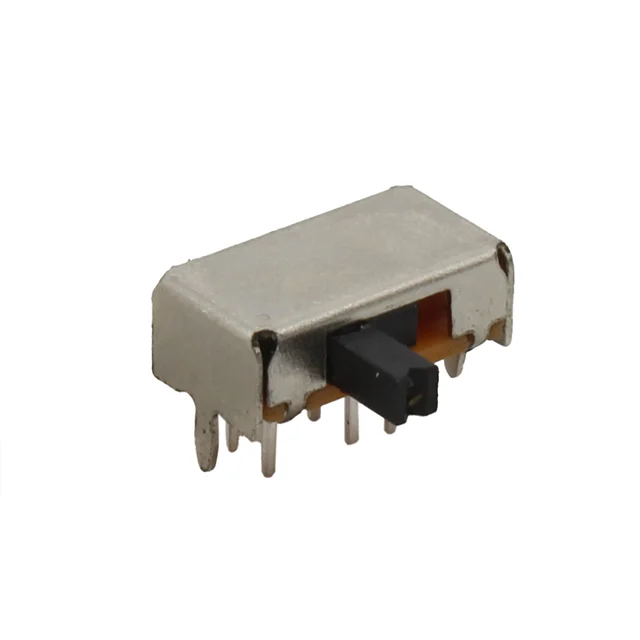

Switch-MS2310

MS2310 Series

DP3T and miniature in size, the MS2310 Series is a right angle slide switch with multiple actuator lengths, multiple positions and steel housing.

Features

Right Angle, Sub-Miniature Size, Multiple Actuator Lengths, Multiple Positions, Steel Housing

Datasheet in PDF



Specification

Electrical Ratings

300mA@50VDC

Number Of Poles

DP3T

Latching Option

Multiple

Terminal Options

PC Pin

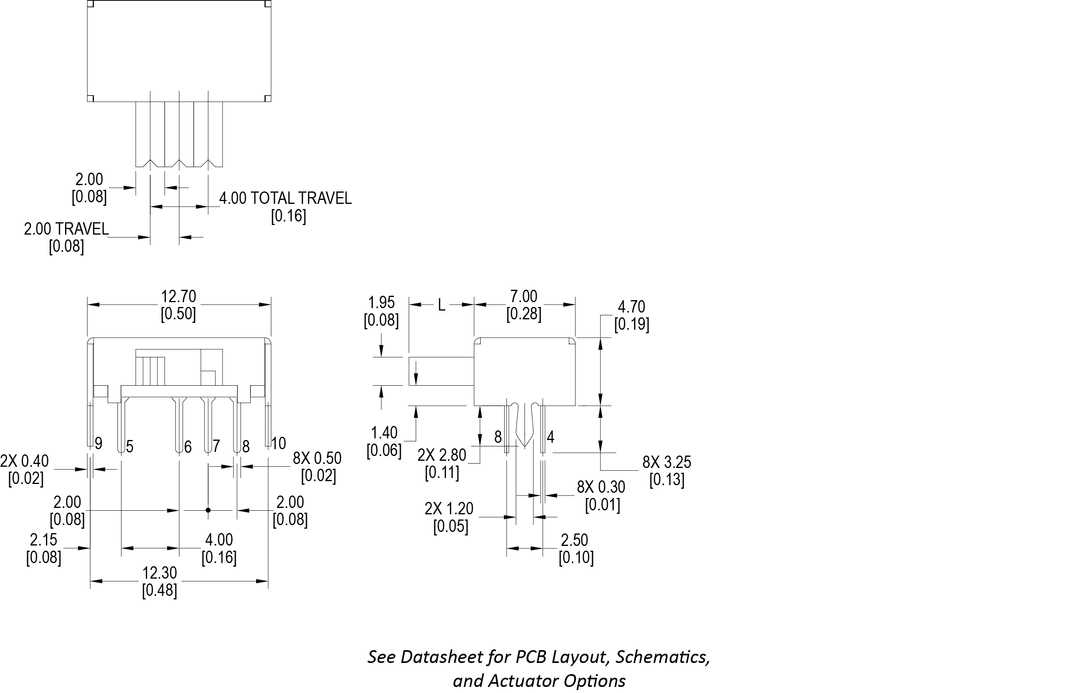

Dimensional Drawing
