PC375L

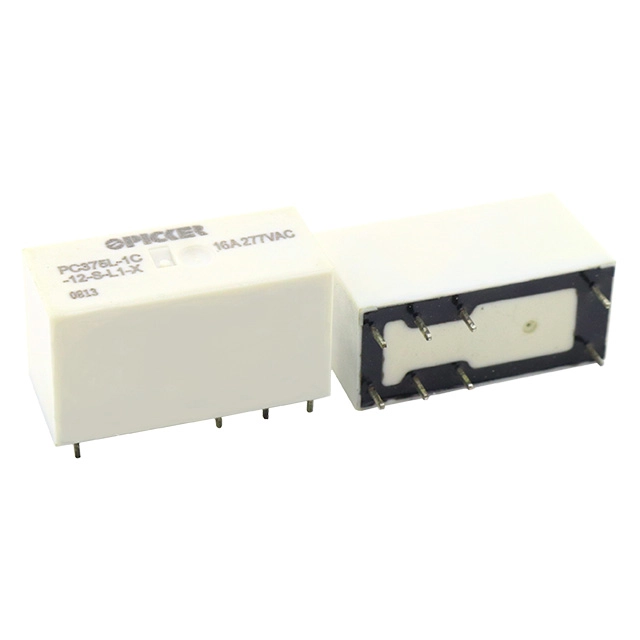

Relay-PC375L

PC375L Series

Latching Low Profile PCB Power Relay

Features

Low Profile PCB Power Relay, 0.62 inch Tall, Class F Material, Meets UL873 Spacing, Up to 16Amp Continuous Contact Capacity

Datasheet in PDF



Specification

Contact Rating

16A@30VDC/250VAC general purpose

Contact Forms

1A, 1C

Coil Voltage

5VDC, 6VDC, 9VDC, 12VDC, 24VDC

Mounting Methods

PC Pin

Agency Approvals

UL E86876

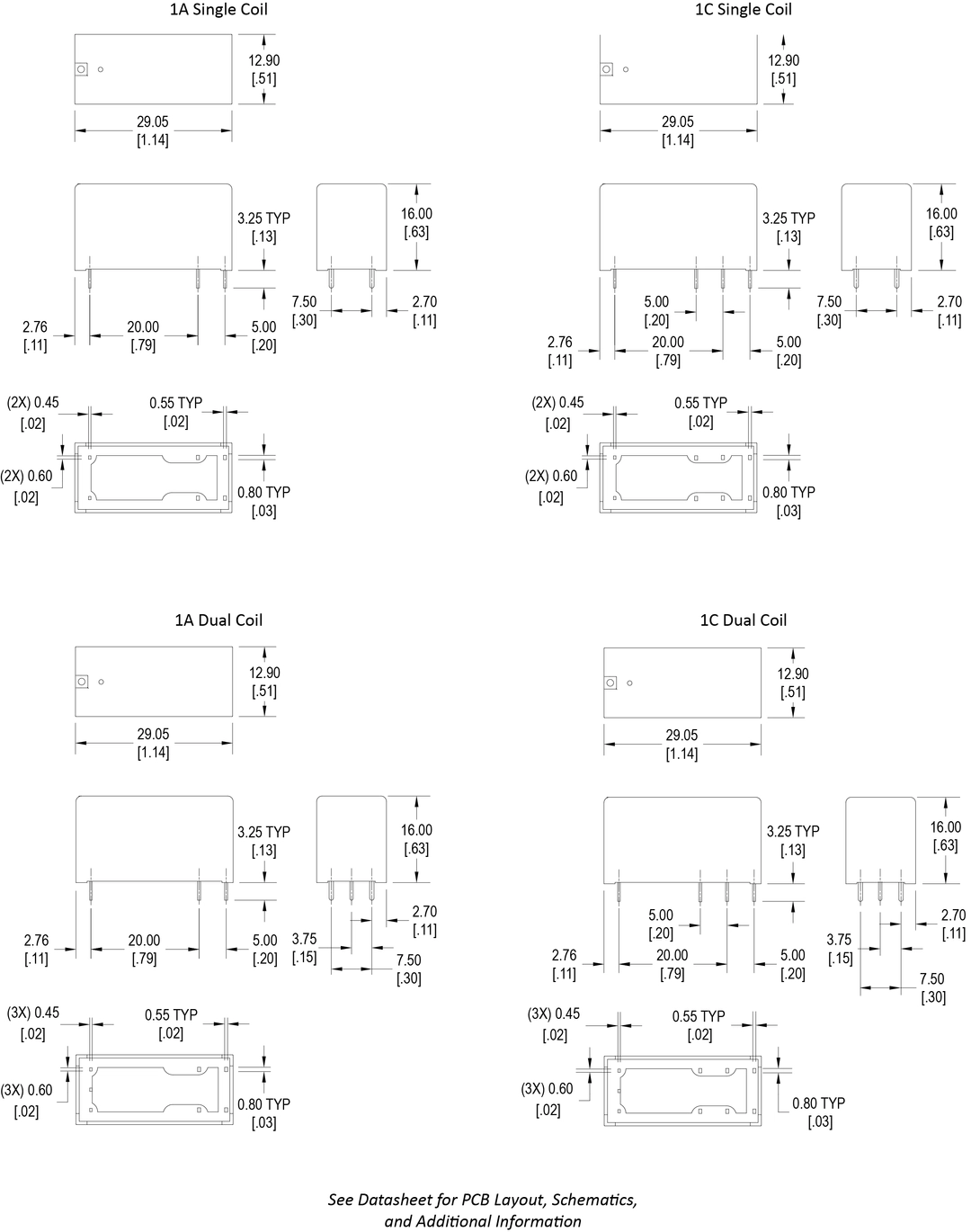

Dimensional Drawing
