Specification
Contact Rating
40A@120VAC resistive, 30A@250VAC resistive, 40A@250VAC general purpose, 1-1/2hp@120VAC motor load, 2hp@250VAC motor load
Contact Forms
2A, 2C, 3A, 3C
Coil Voltage
12VDC, 24VDC, 48VDC, 110VDC, 12VAC, 24VAC, 48VAC, 120VAC, 220VAC, 240VAC
Mounting Methods
PC Pin, Quick Connect
Agency Approvals
UL E318155

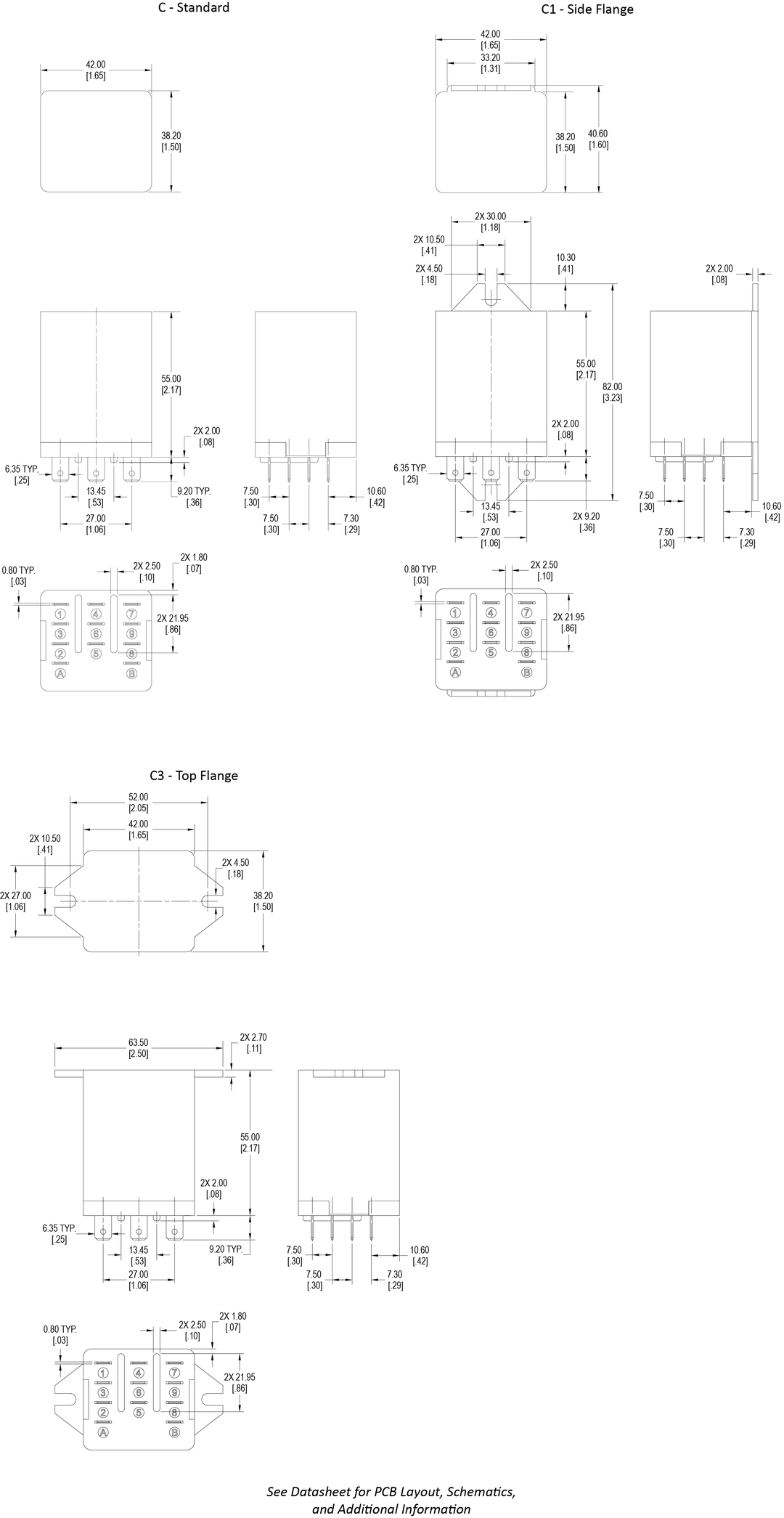

Dimensional Drawing
