Specification
Contact Rating
10A@125VAC resistive, 5A@240VAC resistive, 4.2A@277VAC resistive, 5A@250VAC general purpose, 4.2A@277VAC general purpose, 1/4hp@120/240/277VAC motor load, TV-5@120VAC tungsten load, 24VA@24VAC pilot duty, 125VA@120/240/277VAC pilot duty, C150@120VAC pilot duty
Contact Forms
1A, 1C
Coil Voltage
3VDC, 5VDC, 6VDC, 9VDC, 12VDC, 18VDC, 24VDC
Mounting Methods
PC Pin
Agency Approvals
UL E93379

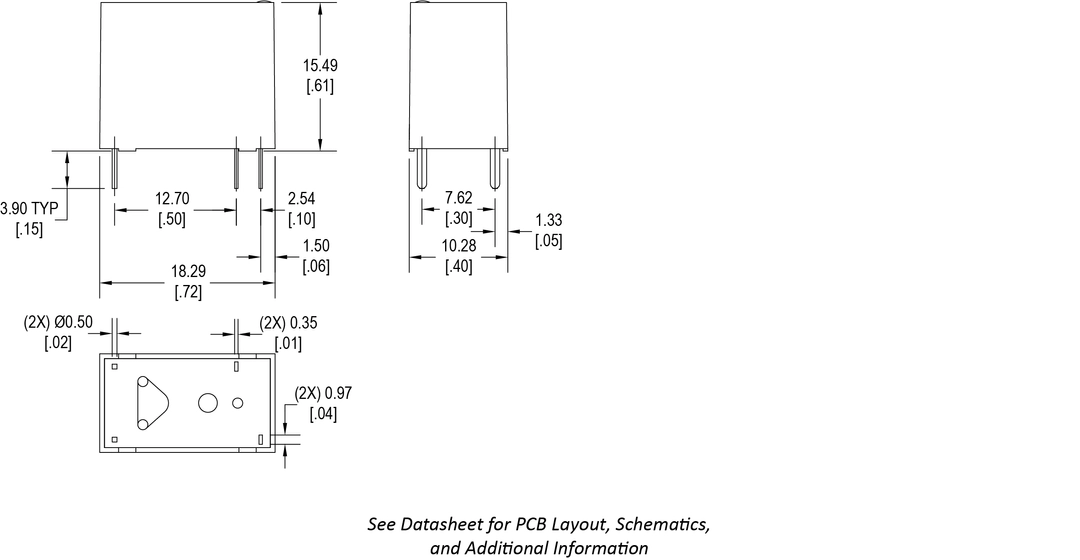

Dimensional Drawing
