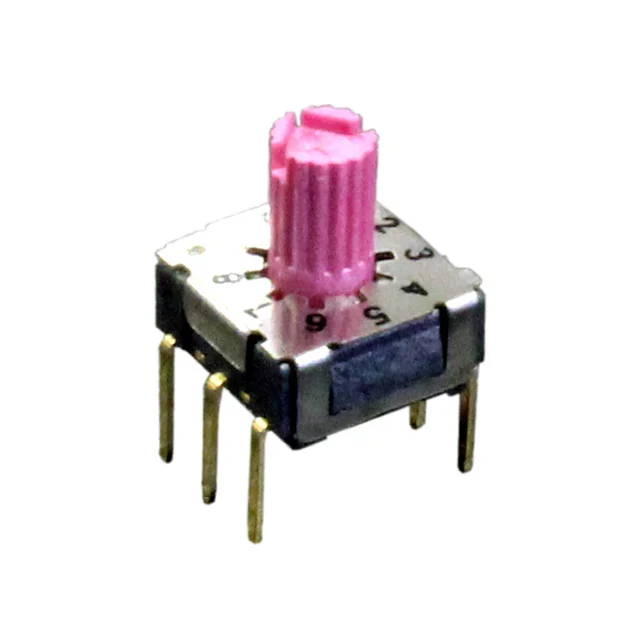

RD07 Series
The RD07 Series Coded Rotary DIP switch is IP67 process sealed in a sub-miniature package. 7mm in size, the RD07 Series is available with three actuator style options in extended or recessed style. Offering three positions from 4 to 16, the RD07 is available with straight or gull wing termination. Packaging options include tube or tape & reel.
Features
IP67 Process Sealed, 7mm, 3 Actuator Style Options, Three Positions from 4 to 16
Specification
Electrical Ratings
100mA @ 50VDC
Body Diameter
7mm
Terminal Options
Straight, Gull Wing

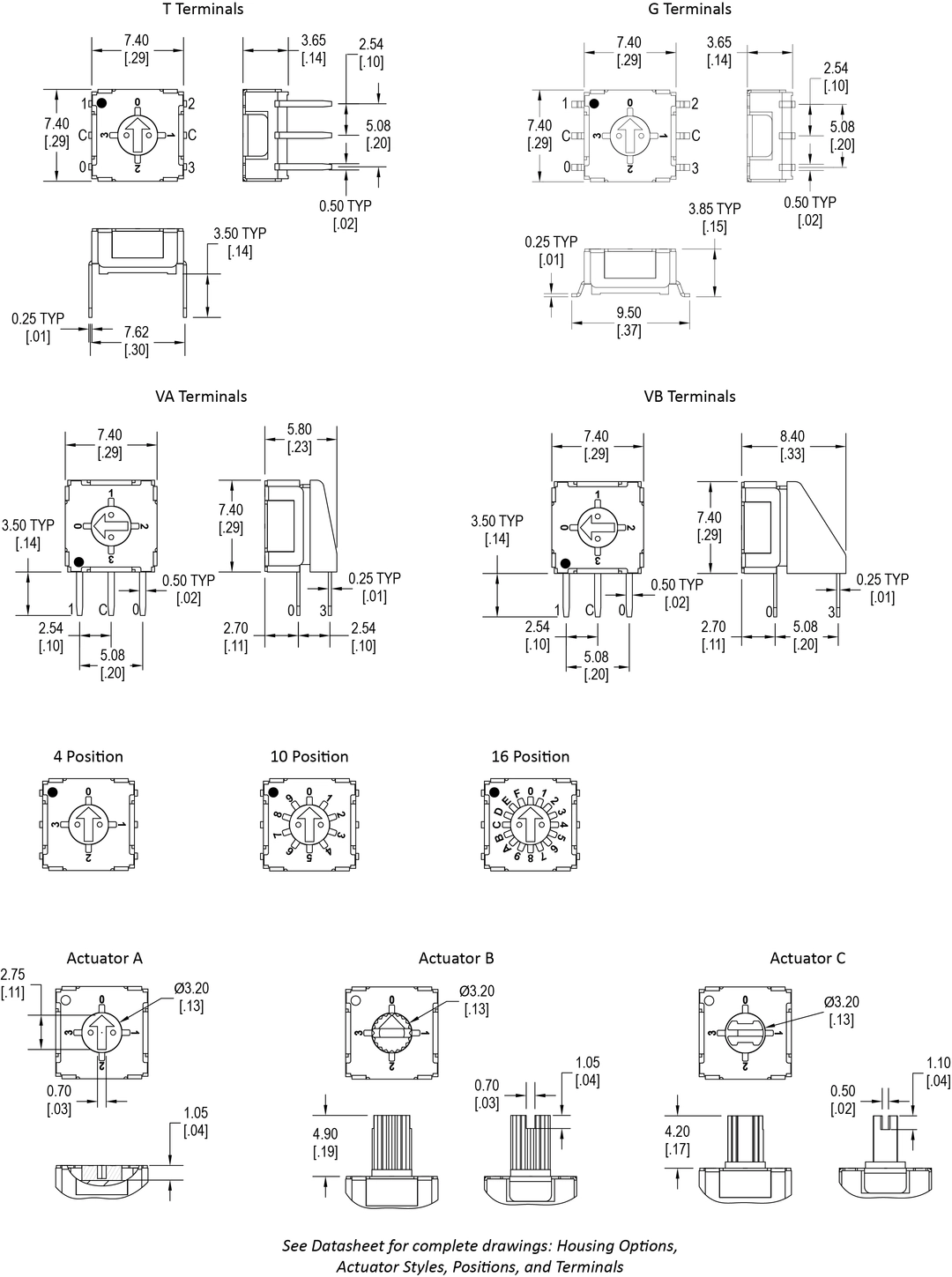

Dimensional Drawing
