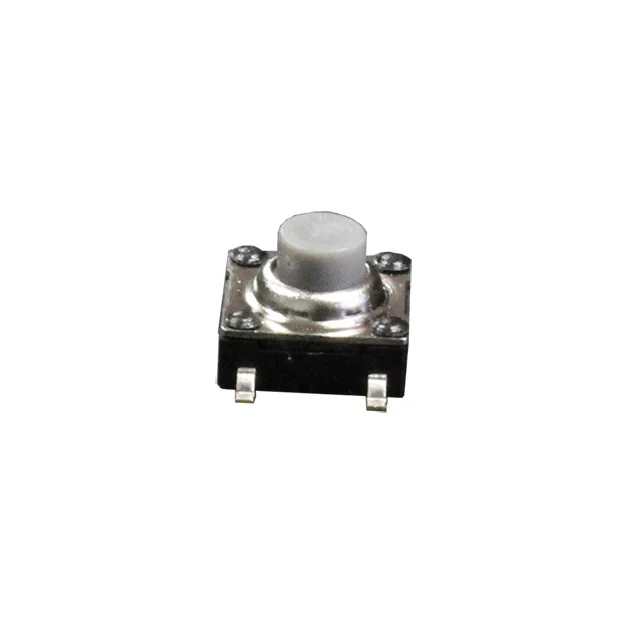

STS Series
The STS Series tactile switch has surface mount gull wing termination with IP67 sealing degree. SPST and momentary, the STs offers actuation force choices of 200gF or 260gF. With a stainless steel contact dome, actuation travel is .45mm with actuator length choices of 4.3mm, 5.0mm or 7.0mm.
Features
Surface Mount, IP67 Process Sealed, Stainless Steel Dome Option, Multiple Actuation Force Options, Gull Wing Termination
Specification
Electrical Ratings
50mA@48VDC
Sealing Degree
IP67, Process Sealed
Number Of Poles
SPST
Latching Option
Momentary
Terminal Options
Process Sealed Gull Wing
Dimensional Drawing
