J104B Series UL Approved Relay
The J104B Series relay offers bifurcated contacts for high reliability with high sensitivity. Conforming to FCC Part 68, this PC pin mounted relay offers 2C contact arrangement with coil voltage ranging from 3VDC up to 48VDC with coil power options of .15W or .20W. Dimensions for the sensitive relay are 20.0 x 9.8 x 10.8mm. UL Agency approval for this twin relay is E197851. For more options, please take a look at this low cost relay from our J104C series.
Features |
Datasheet in PDF |
|
| Bifurcated Relay Contacts for High Reliability Highly Sensitive Light Weight Conforms to FCC Part 68 PC Board Mounting |
|
 |
| Contact Rating |
2A@30VDC Resistive 3A@30VDC N.O. Resistive .6A@125VAC Resistive |
|
| Dimensions | Contact Arrangement |
Contact Material | Coil Voltage | Coil Power | Contact Resistance |
| 20.0 x 9.8 x 10.8 | 2C | AgNi + Au clad | 3VDC, 5VDC, 9VDC, 12VDC, 24VDC, 48VDC | .15W, .20W | < 50m Ohm |
| Insulation Resistance | Electrical Life | Mechanical Life | Dielectric Strength |
| 1000M Ohm @ 500VDC | 500K cycles | 100M cycles | Contact-to-Contact: 1000V rms Contact-to-Coil: 1500V rms |
| Operating Temperature | Mounting Methods | Agency Approvals |
| -40C to 85C | PC Pin | E197851 |

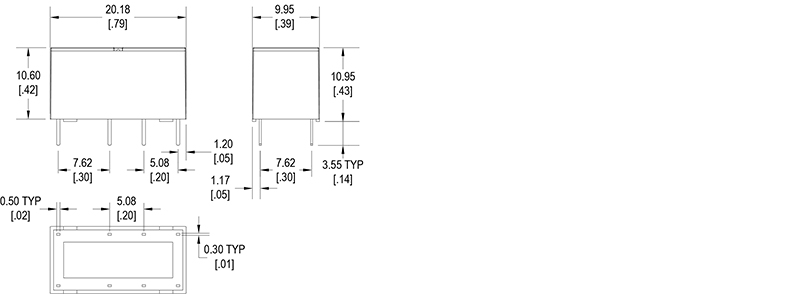

Dimensional Drawing
Schematic

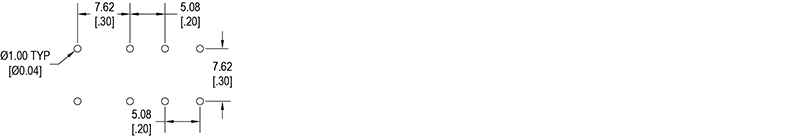

PC Board Layout
