PCS15 Series Solid State Relay
Features |
Datasheet in PDF |
|
10 to 40 Amp Output Relay DC Input Built-In Snubber Optical Isolation between Input and Output |
|
Control Voltage | 4~32VDC |
Dimensions | Sub Type | Control Voltage | Load Voltage | Load Current | Switching Type |
58.6 x 45.7 x 20.5 | UL Hockey Puck Packaged Solid State | 4~32VDC | 240VAC, 380VAC | 10, 15, 20, 25, 40 Amp | Zero Crossing, Random Turn-On |
Status LED | Mounting Methods | Weight | Agency Approvals |
Indicator LED | Screw Terminal, Quick Connect | 70g | E93379 |

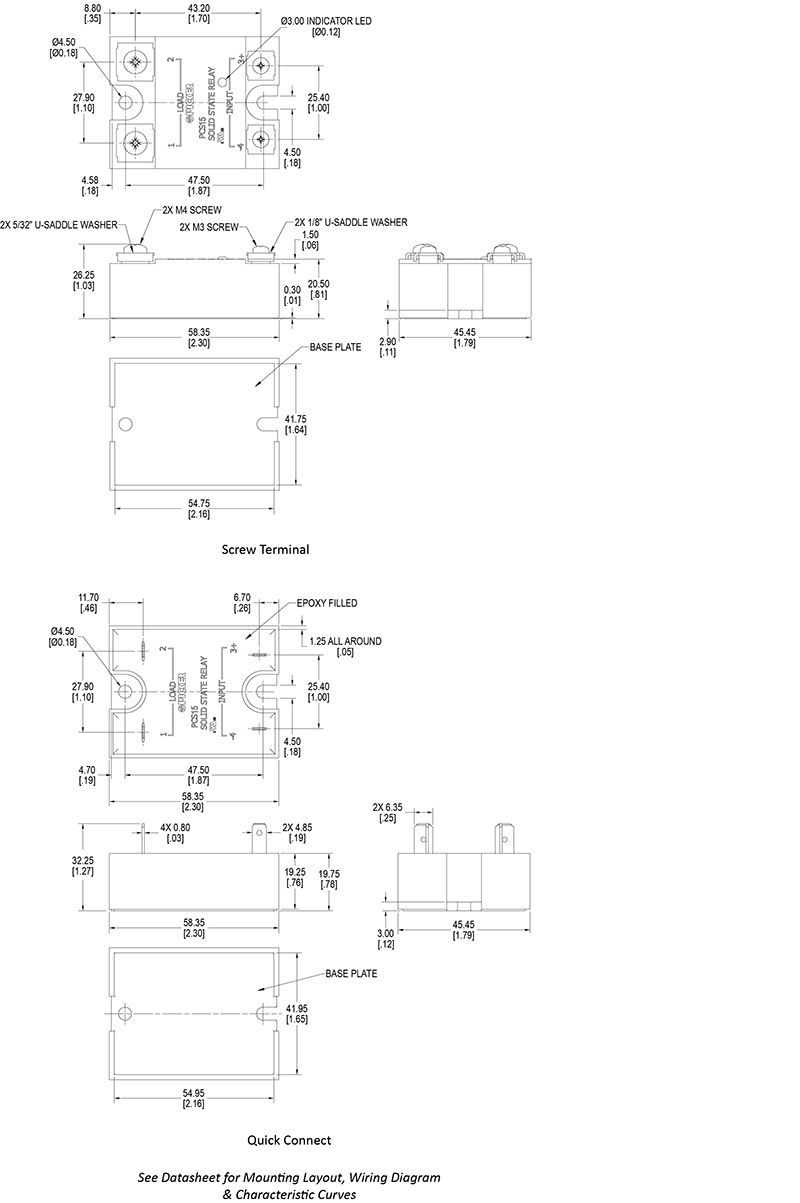

Dimensional Drawing
