CSR Series Rocker Switch
The CSR Series switch is IP67 process sealed ultra-miniature rocker switch offering single or double pole function. With a lever or rocker style actuator choice, the CSR Series offers terminal options of PC pin, horizontal mount right angle PC pin or vertical mount right angle PC pin. Gold plated contacts are standard.
Features |
Datasheet in PDF |
|
| Ultra Sub-Miniature Rocker Switch IP67 Process Sealed Wide Variety of Terminals Single or Double Pole Option |
 |
 |
| Classifications | Right Angle Through-Hole Sub-Miniature Sealed | |
Number Of Poles
SPST, DPST
Latching Option
Multiple
Terminal Options
PC Pin, Horizontal Mount Right Angle PC Pin, Vertical Mount Right Angle PC Pin
Electrical Ratings
.4VA@20VAC or VDC max
Sealing Degree
Process Sealed
Electrical Life
40,000 cycles
Contact Resistance
<= 100mOhm initial
Dielectric Strength Contact To Contact
500V rms
Insulation Resistance
> 500MOhm min
Operating Temperature
-40C to 85C
Storage Temperature
-40C to 85C
Actuator Materials
6/6 Nylon
Housing Materials
6/6 Nylon Glass Filled, UL94V-0
Contacts Materials
Gold over Nickel Plated Copper Alloy
Terminals Materials
Gold over Nickel Plated Copper Alloy
Support Bracket Material
Tin Plated Steel
Actuator Color
Black
Cap Colors
Contact Factory

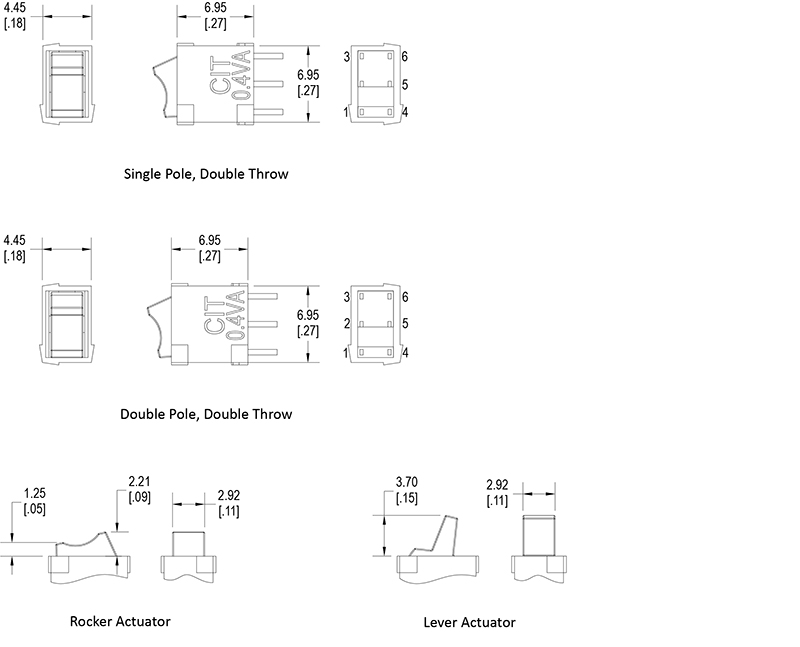

Dimensional Drawing

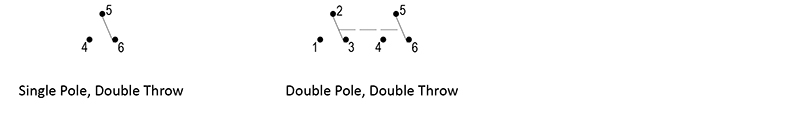

Schematic
