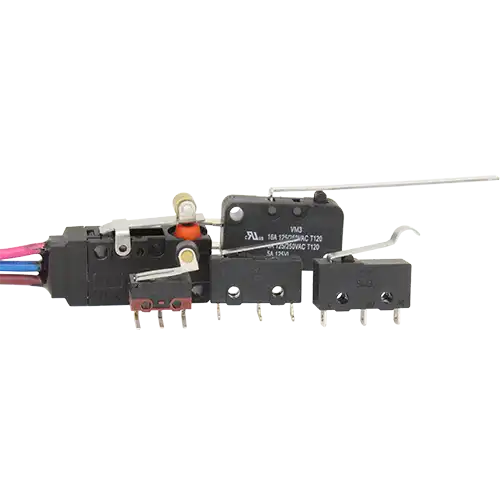

CIT Relay & Switch offers the VM3 Series (miniature) and SM3 Series (sub-miniature) snap-action switches, available in both SPST and SPDT configurations. These UL/cUL recognized switches feature a variety of actuator styles, including pin plunger, standard, short and long hinge levers, roller, and simulated roller options. Termination choices include .110” quick connect, solder lug, PC terminals, and right or left PC terminals.
Both series use silver contact material and are available with a range of operating forces. Switches are rated up to 16 amps at 125VAC or 250VAC, with IP67 sealed versions offered for applications requiring environmental protection.
CIT also provides custom switch solutions to meet unique application requirements. Our engineering team is available to assist in selecting or designing the ideal snapaction switch for your needs.
Pricing varies based on configuration and volume. Contact CIT Relay & Switch for current lead times.
CIT Relay & Switch manufactures a wide range of relays and switches for automotive, telecom, security, industrial, and audio applications in thru-hole, panel, and surface mount options. Products are supported globally through an extensive distributor and representative network.
