A16 25 Amp Automotive PCB Relay
Switch capacity up to 25A with PC pin mounting, the light weight and small in size A16 Series is QS-9000 and ISO-9002 certified. Offering F Class insulation standard , the A16 Series is available with contact arrangement 1C. Coil voltage is 12VDC, with coil power options of .64W or .80W. Dimensions are 14.5 x 7.7 x 13.7mm.
Features
Light Weight and Small Size, 25A Switching Capacity, F Class Insulation Standard, QS-9000 and ISA-9002 Certified Manufacturing
Specification
Contact Rating
25A@14VDC
Contact Forms
1C
Coil Voltage
12VDC
Coil Power
.64W, .80W
Mounting Methods
PC Pin

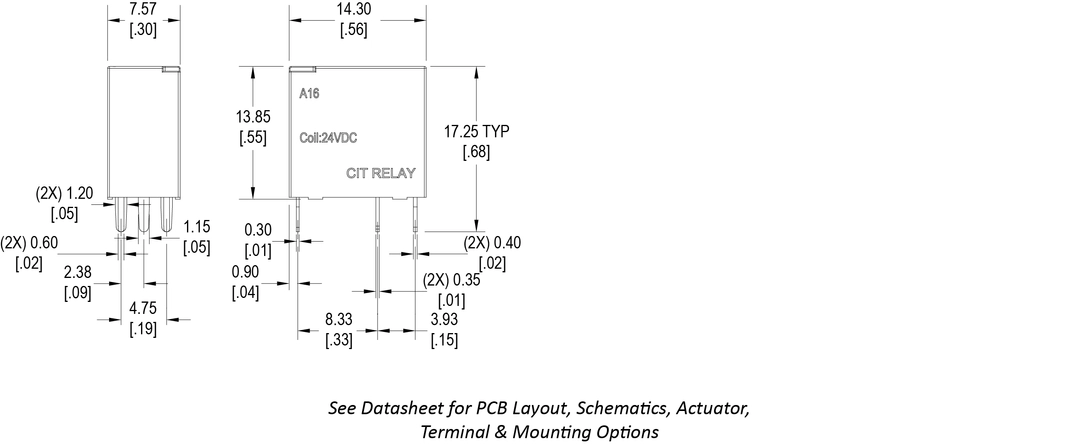

Dimensional Drawing
