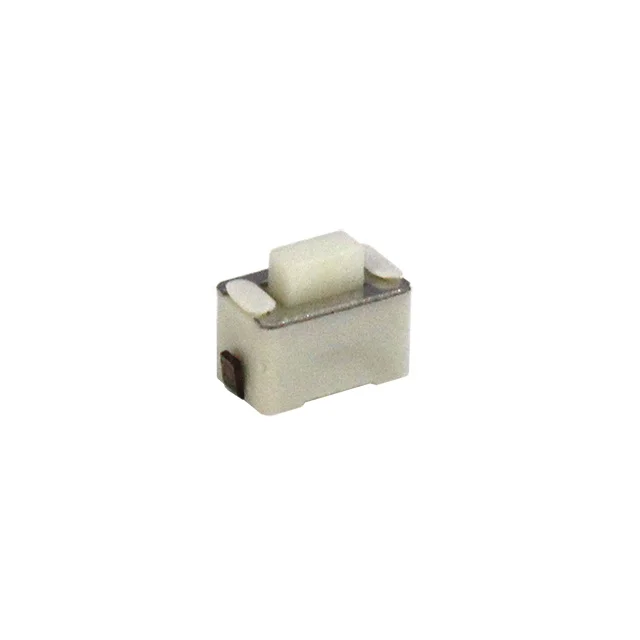

CT1101 Series Through-Hole Tactile Switch
With through-hole termination, the sub-miniature CT1101 tact switch is SPST and momentary. Actuator length options are 4.3mm or 5.0mm with actuation force options from 130gF up to 260gF and actuator travel of .25mm.
Features
Through-Hole, Actuator Length Options, Actuation Force Options
Specification
Electrical Ratings
50mA@50VDC
Number Of Poles
SPST
Latching Option
Momentary
Terminal Options
Through-Hole

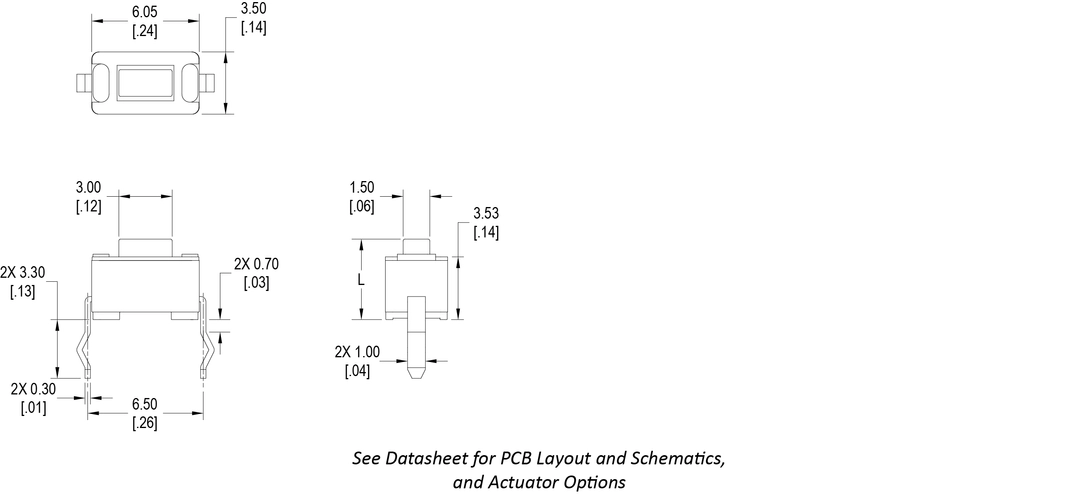

Dimensional Drawing
