IN12

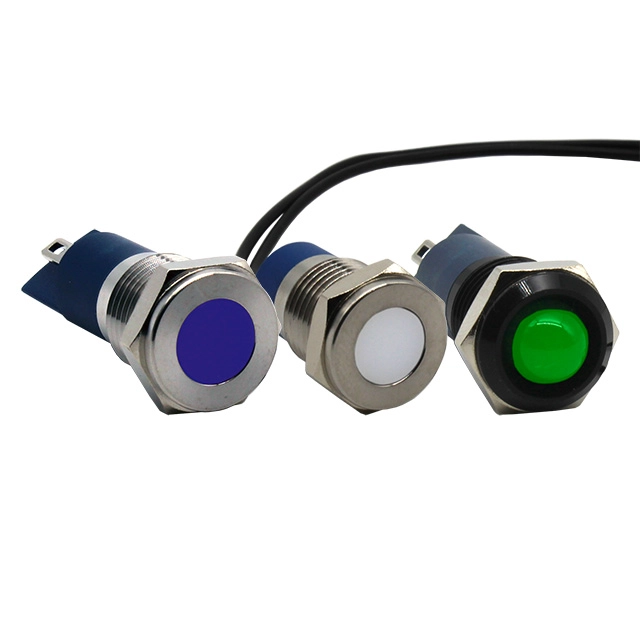

IN12 Series
The IN Series is in sizes ranging from 6mm up to 25mm with the option of quick connect, 150mm wire or screw teminals. Offering brushed stainless steel, nickel plated brass, or black plated brass switch finish with LED color illumination including RGB, the IN Series is available with LED voltage from 6VDC up to 222VDC.
Features
12mm; Flush or Rounded Lens; Marine Grade Brushed Stainless Steel, Brushed Stainless Steel, Nickel Plated Brass, or Black Plated Brass
Specification
Sealing Degree
IP67
Mounting
Panel Mount
Size
12mm
Lens
Flush Bezel, Rounded Bezel
Indicator Finish
Brushed Stainless Steel SUS304, Brushed Stainless Steel SUS316L, Black Plated Brass, Nickel Plated Brass
Illumination Options
LED
Led Voltage
6VDC, 12VDC, 24VDC, 110VDC, 220VDC, No Internal Resistor
Dimensional Drawing
