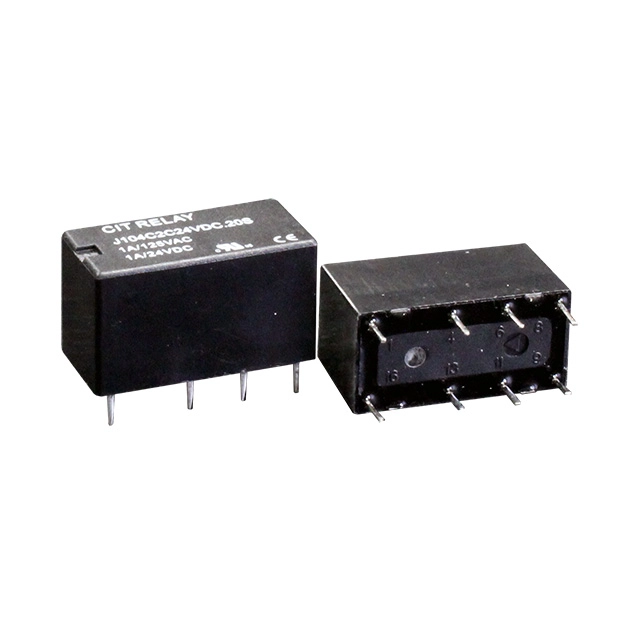

J104C Series
The J104C Series relay is a low cost relay with standard contacts rated at 1A. Highly sensitive in a small, light-weight package, the J104C conforms to FCC Part 68. PC pin mounted with 2C contact arrangement, the J104D offers coil voltage ranging from 5VDC up to 24VDC with coil power options of .20W or .36W. Dimensions are 20.0 x 9.8 x 10.8mm. UL Agency approval is E197851.
Features
Low Cost Version with Standard Contacts, Highly Sensitive, Light Weight, Conforms to FCC Part 68, PC Board Mounting
Specification
Contact Rating
1A@24VDC Resistive, 1A@125VAC Resistive, 2A@30VDC Resistive
Contact Forms
2C
Coil Voltage
3VDC, 5VDC, 9VDC, 12VDC, 24VDC
Coil Power
.20W, .36W
Mounting Methods
PC Pin
Agency Approvals
UL E197851
Dimensional Drawing
