J105E Series

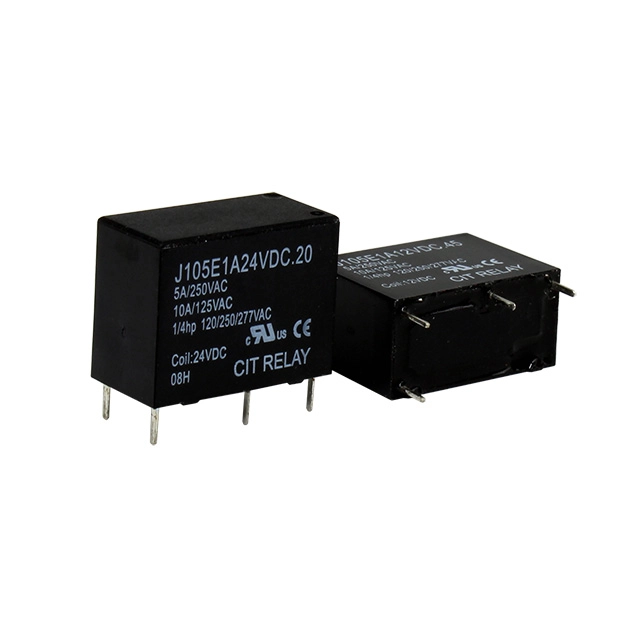

The J105E Series relay, capable of handling up to 10A, comes in a compact and lightweight design. It features low coil power consumption while supporting high contact loads, with contact configurations of 1A or 1C and voltage options ranging from 3VDC to 24VDC. Available coil power options include 0.20W and 0.45W. The relay’s dimensions are 20.59 x 10.15 x 15.75mm, and UL agency approval is E197851.
Features
Switching Capacity up to 10A, Small Size and Light Weight; Low Coil Power Consumption, High Contact Load
Specification
Contact Rating
NO: 10A@125VAC/120VAC/277VAC, 5A@250VAC/240VAC, 4.2A@277VAC, 3A@30VDC, TV-5@120VAC, 1/4hp@120/240/277VAC, Pilot Duty 24VA@24VAC, 125VA@120/240/277VAC, C150@120VAC; NC: 10A@120VAC/25VAC, 5A@240VAC/250VAC, 4.2A@277VAC, 3A@30VDC, TV-5@120VAC, 1/4hp@120/240/277VAC, Pilot Duty 24VA@240VAC, 125VA@120/240/277VAC, C150@120VAC
Contact Forms
1A, 1C
Coil Voltage
3VDC, 5VDC, 6VDC, 9VDC, 12VDC, 18VDC, 24VDC
Coil Power
.20W, .45W
Mounting Methods
PC Pin
Agency Approvals
UL E197851
