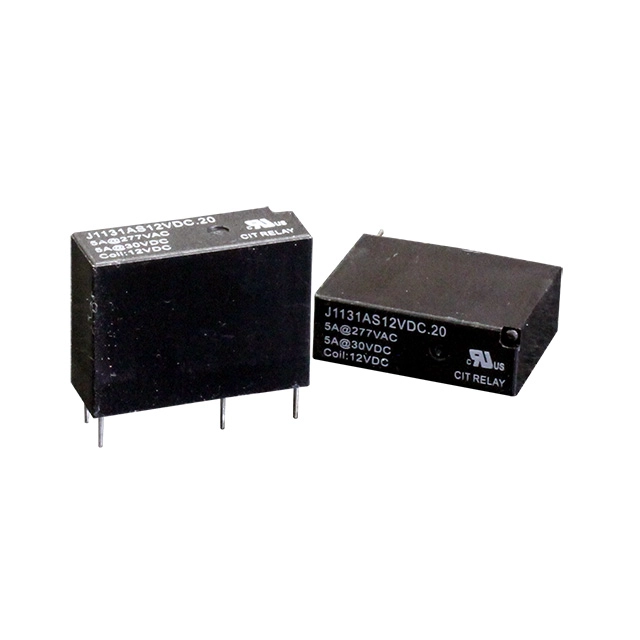

J113 Series
The J113 Series relay offers low power consumption in a ultra-light weight narrow package, ideal for high density mounting. This PC pin mounted relay offers 1A contact arrangement with coil voltage ranging from 5VDC up to 24VDC with coil power of .20W. Dimensions are 20.2 x 5.3 x 12.8mm. UL Agency approval is E197851.
Features
Ultra Light Weight, Narrow Width Ideal for High Density Mounting, UL/cUL Certified
Specification
Contact Rating
5A@277VAC Resistive, 5A@30VDC Resistive
Contact Forms
1A
Coil Voltage
5VDC, 12VDC, 18VDC, 24VDC
Coil Power
.20W
Mounting Methods
PC Pin
Agency Approvals
UL E197851

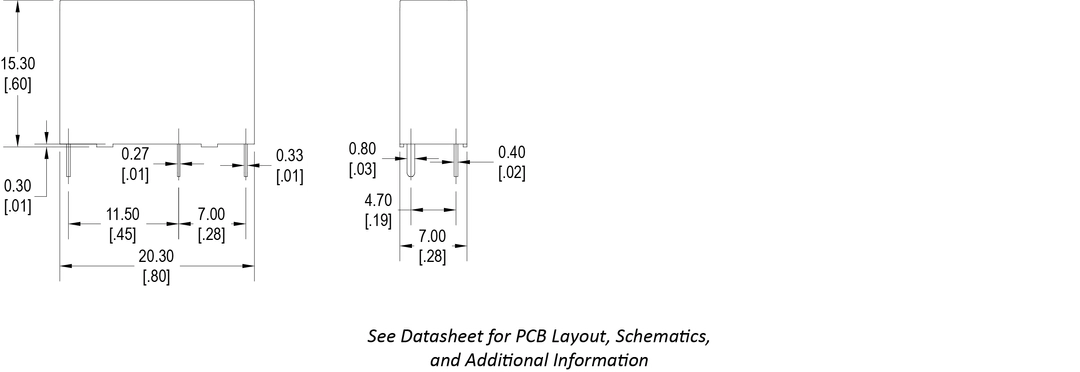

Dimensional Drawing
