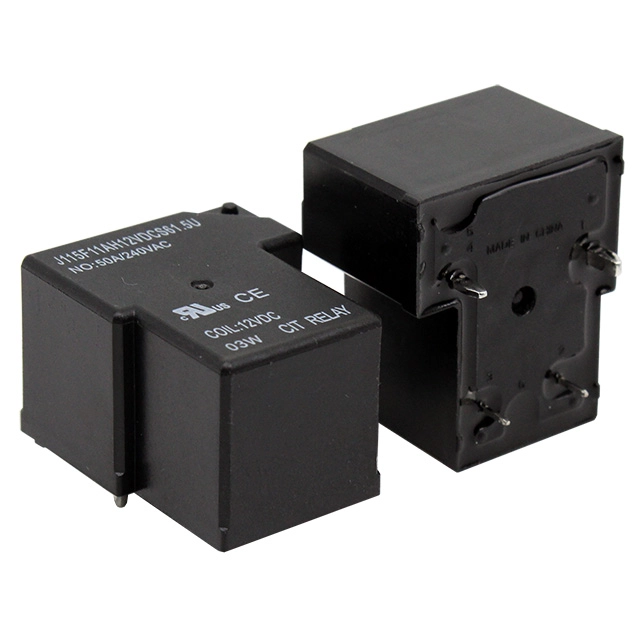

J115F1 50amp Series
The J115F 50amp Series relays offer heavy contact load and strong shock and vibration resistance in a light-weight and small size package. These relays offer 1A, 1B or 1C contact arrangement with coil voltage ranging from 5VDC up to 48VDC with coil power of 1.5W. Dimensions depend upon the style option chosen, including PC pin and mounting tab versions. UL Agency approval is E197852.
Features
50A Max Switching Current, Light Weight and Small Size, Low Coil Power, Heavy Contact Load
Specification
Contact Rating
UL Spec: NO 50A@240VAC, NC 35A@240VAC; TUV Spec: NO 50A@240VAC
Contact Forms
1A, 1B, 1C
Coil Voltage
5VDC, 9VDC, 12VDC, 24VDC, 48VDC, 24VAC, 120VAC, 220VAC, 240VAC, 277VAC
Coil Power
.9W, 1.5W, 2.7VA
Mounting Methods
PC Pin
Agency Approvals
UL E197852
Dimensional Drawing
