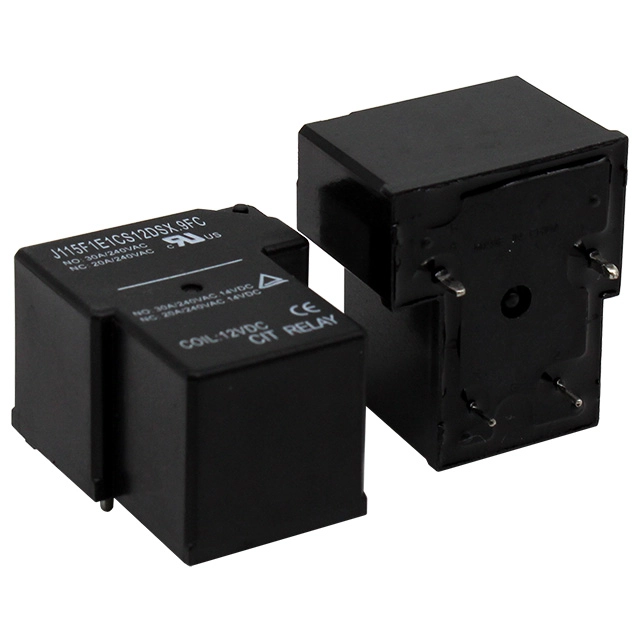

J115F1E Series
The J1151E Series relays are economical, with switching capacity up to 30A. Offering heavy contact load and strong shock and vibration resistance in a light-weight and small size package, these relays offer 1A, 1B or 1C contact arrangement with coil voltage ranging from 5VDC up to 110VDC with coil power options of .60W or .90W. Dimensions depend upon the style option chosen, including PC pin, low profile, mounting tab versions and with or without dust cover. Agency approval is UL E197852 and TÜV.
Features
30A Max Switching Current, High Dielectric Strength Option, Light Weight and Small Size, Low Coil Power Consumption, Strong Shock and Vibration Resistance, UL/cUL and TUV Certified
Specification
Contact Rating
TUV Spec: NO 30A@240VAC and 14VDC, NC 20A@240VAC and 14VDC; UL Spec: NO 30A@240VAC Resistive, NC 20A@240VAC Resistive
Contact Forms
1A, 1B, 1C
Coil Voltage
5VDC, 9VDC, 12VDC, 24VDC, 48VDC, 110VDC
Coil Power
.60W, .90W
Mounting Methods
PC Pin
Agency Approvals
UL E197852 and TUV
Dimensional Drawing
