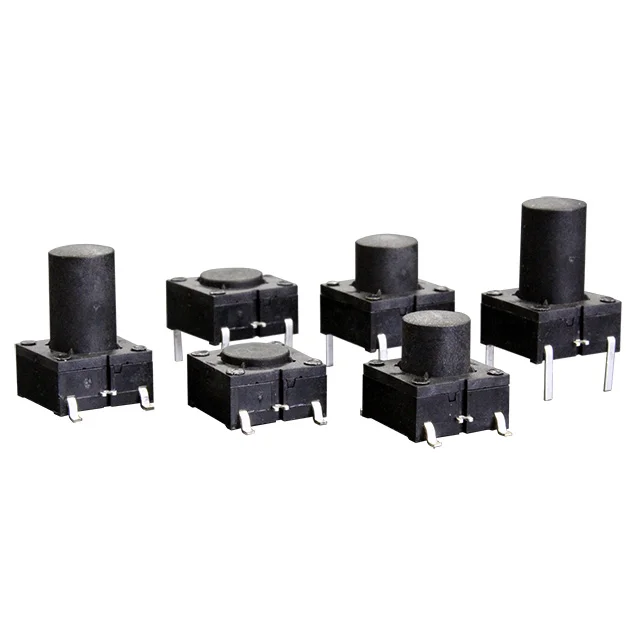

ME Series Process Sealed Tactile Switch
The ME Series is an IP67 process sealed tactile switch offering both through-hole and surface mount options with a 350gF actuation force. With actuator and housing of PA6T Polymide and silver plated stainless steel dome contact, the ME Series uses a silicon rubber internal seal providing truly sealed, one piece construction. Actuator color is standard black; contact factory for additional color options.
Features
Through-Hole and Surface Mount, Multiple Actuator Height Options, Actuation Force of 350gF, Standard Black actuator, Contact Factory of Additional Color Options
Specification
Electrical Ratings
50mA@24VDC
Sealing Degree
IP67, Process Sealed
Number Of Poles
SPST
Latching Option
Momentary
Terminal Options
Through-Hole, Surface Mount
Dimensional Drawing
