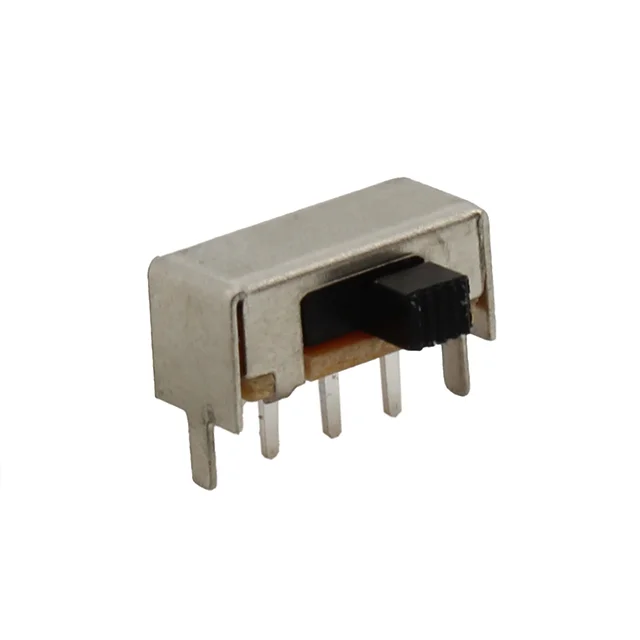

MS1206 Series Right Angle Horizontal Miniature Slide Switch
Right Angle and sub-miniature in size, the SPDT, through-hole MS1206 Slide switch offers steel housing materials with actuator length choices from 3.0mm to 6.0mm.
Features
Right Angle, Sub-Miniature Size, Multiple Actuator Lengths, Steel Housing
Specification
Electrical Ratings
200mA@30VDC
Number Of Poles
SPDT
Latching Option
Multiple
Terminal Options
PC Pin

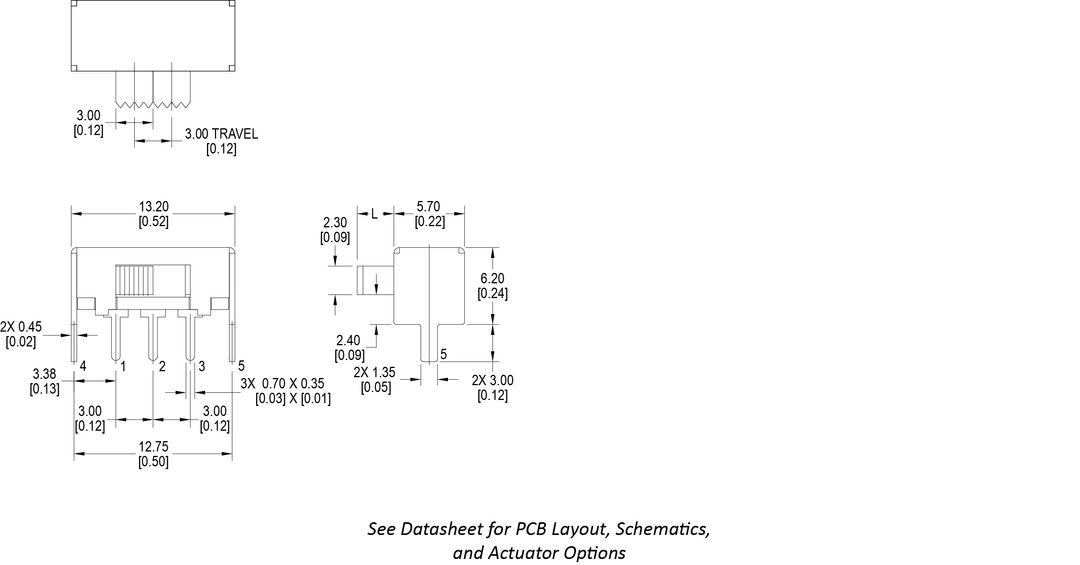

Dimensional Drawing
