PC537

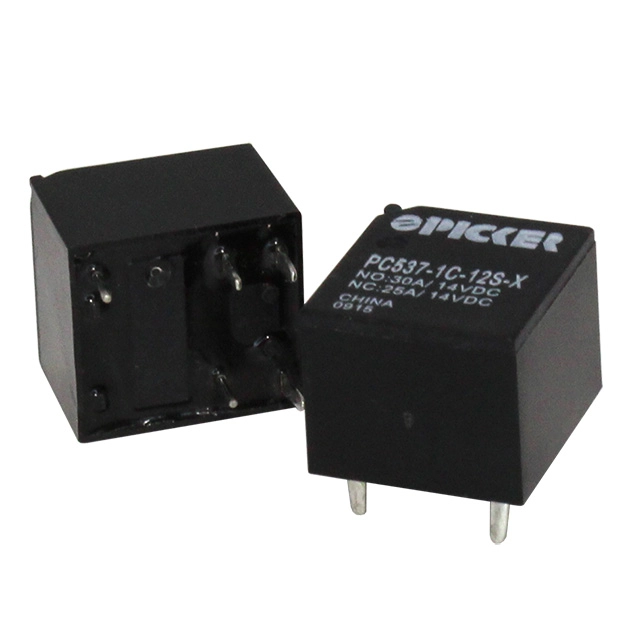

Relay-PC537

PC537 Series

Ultraminiature 30 Amp Automotive PCB Mounted Relay

Features

Ultraminiature 30 Amp Automotive PCB Mounted Relay, 1A and 1C Contact Forms, Contact Switching Capacity up to 100A, Process Sealed

Datasheet in PDF



Specification

Contact Rating

30A@14VDC resistive, 25A@14VDC resistive, 15A@28VDC resistive, 12.5A@28VDC resistive

Contact Forms

1A, 1C

Coil Voltage

10VDC, 12VDC, 24VDC

Mounting Methods

PC Pin

Dimensional Drawing
