Specification
Contact Rating
1A: 30A@277VAC; 2A: 25A@277VAC
Contact Forms
1A, 2A
Coil Voltage
6VDC, 12VDC, 24VDC, 48VDC, 110VDC, 220VDC, 6VAC, 12VAC, 24VAC, 48VAC, 110VAC, 220VAC, 380VAC, 400VAC
Mounting Methods
PC Pin, Screw Terminal, Quick Connect
Agency Approvals
UL E86876

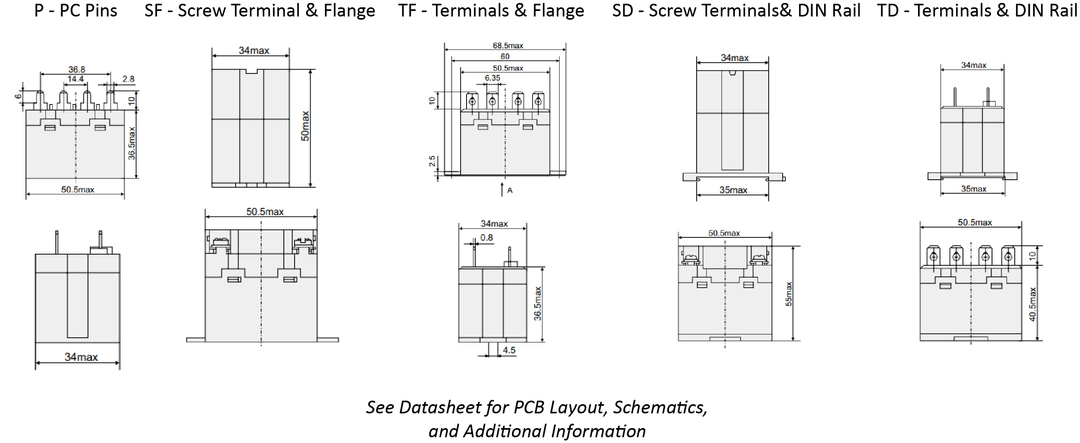

Dimensional Drawing
