PC7150

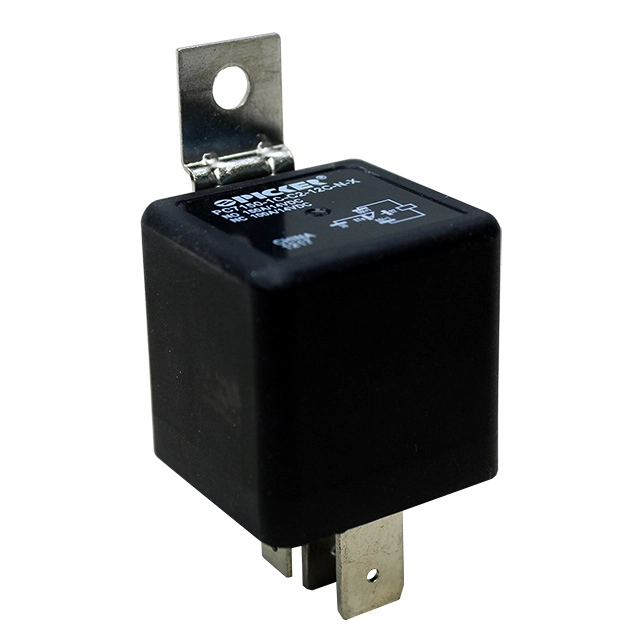

Relay-PC7150

PC7150 Series

150/100 Amp Automotive Plug-In / PCB Maxi ISO Relay

Features

150 100 Amp Automotive Plug-IN PCB Maxi ISO Relay, 1A and 1C Contact Forms, Contact Switching Capacity up to 450 Amps, Metal Mounting Bracket Option

Datasheet in PDF



Specification

Contact Rating

150A@14VDC, 100A@14VDC, 75A@28VDC, 50A@28VDC

Contact Forms

1A, 1C

Coil Voltage

12VDC, 24VDC, 48VDC

Mounting Methods

PC Pin, Quick Connect

Dimensional Drawing
