PC822

PC822

PC822

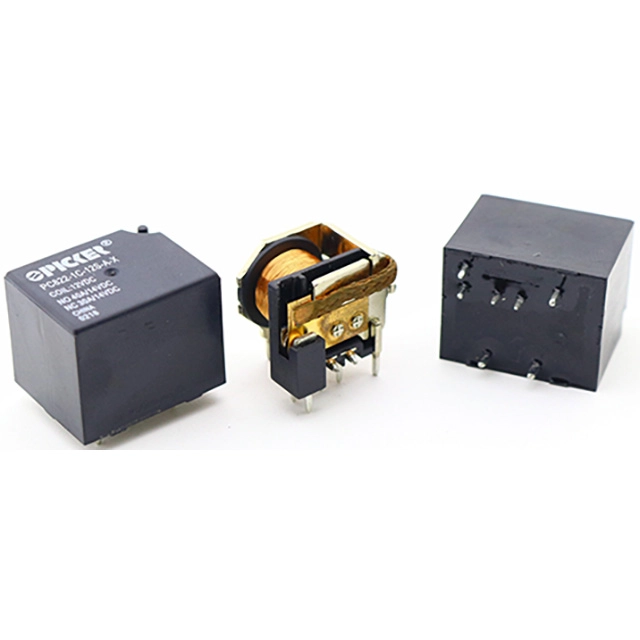

45 Amp Miniature Automotive PCB Relay

Features

45 Amp Automotive PCB Relay, 1A 1B and 1C Contact Forms, US and European Footprint, Open Frame Option

Datasheet in PDF



Specification

Contact Rating

45A@14VDC, 40A@14VDC, 30A@14VDC, 22.5A@28VDC, 20A@28VDC, 15A@28VDC

Contact Forms

1A, 1B, 1C

Coil Voltage

6VDC, 9VDC, 12VDC, 18VDC, 24VDC

Mounting Methods

PC Pin

Dimensional Drawing
