SST Series Process Sealed Surface Mount Miniature Toggle Switch
IP67 process sealed and sub-miniature in size, the SST Series toggle switch is surface mount with multiple latching options and switch functions. The SST Series offers a choice of silver or gold plated contacts and actuator length options ranging from 6.10mm up to 13.97mm, including anti-static plastic choices.
Features
IP67 Process Sealed, Surface Mount, Silver or Gold Plated Contacts
Specification
Electrical Ratings
3A@120VAC, 1.5A@250VAC
Sealing Degree
IP67, Process Sealed
Number Of Poles
SPDT
Latching Option
Multiple
Terminal Options
Standard SMT, Straight SMT

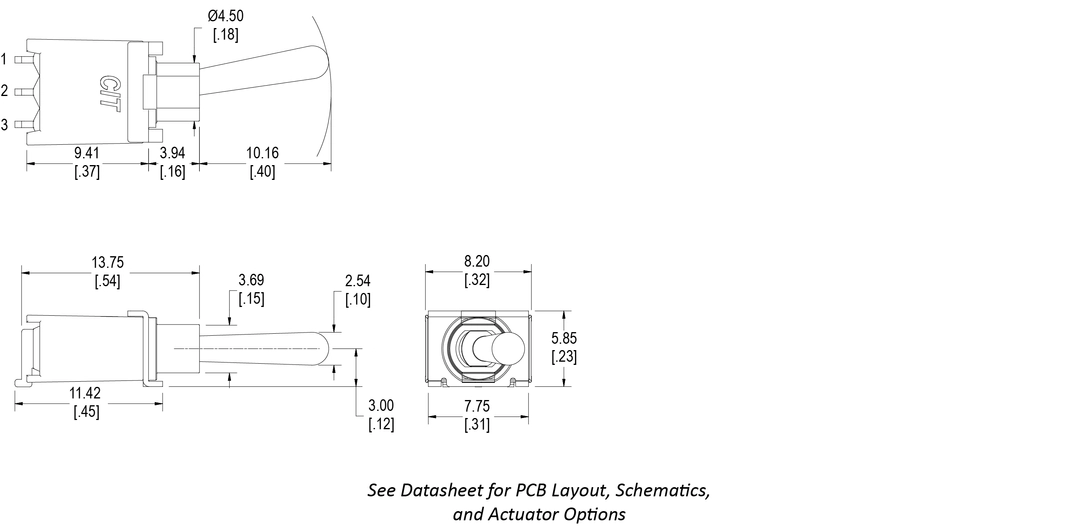

Dimensional Drawing
