1000 Series Slide Switch
The 1000 Series is a UL Approved miniature, through-hole slide switch with a choice of SPDT or DPDT poles. Switch functions includes On-None-On, On-None-(On) and On-Off-On. Actuator lengths range from 3.6mm up to 9.4mm with termination options of solder lug, standard PC pin, quick connect, horizontal mount right angle PC pin, vertical mount right angle PC pin, or PC pin with support bracket. The 1000 Series is offered with or without mounting ears and housing of steel and nylon.
Features |
Datasheet in PDF |
|
Miniature Slide Switch Standard and Right Angle Multiple Actuator Lengths Steel and Nylon Housings |
![]() |
![]() |
Classifications | Right Angle Panel Mount, Through-Hole Miniature |
Number Of Poles
SPDT, DPDT
Latching Option
Multiple

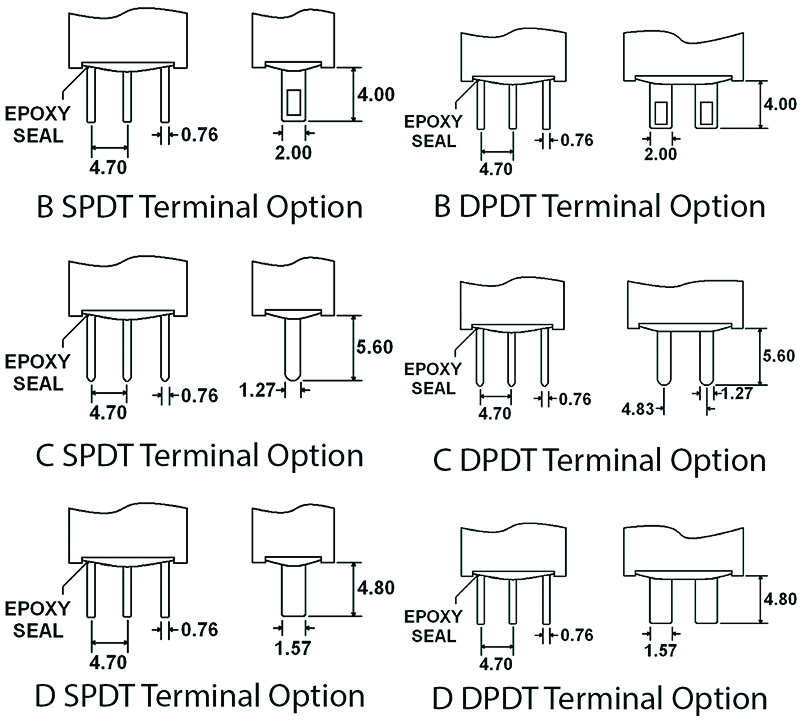

Terminal Options
Solder Lug, PC Pin, Quick Connect, Horizontal Mount Right Angle PC Pin, Vertical Mount Right Angle PC Pin, PC Pin with Support Bracket
Mounting Style
Without Mounting Ears, With Mounting Ears
Switch Function
On-None-On, On-None-(On), On-Off-On
Electrical Ratings
5A@120VAC, 5A@28VDC, 2A@250VAC
Seal
Epoxy
Electrical Life
30,000 cycles
Contact Resistance
<= 10mOhm initial
Dielectric Strength Contact To Contact
1500V rms
Insulation Resistance
> 100MOhm min
Operating Temperature
-40C to 85C
Storage Temperature
-40C to 85C
Actuator Materials
6/6 Nylon
Cover Material
Stainless Steel
Housing Materials
Diallyl Phthalate (DAP)
Contacts Materials
Silver or Gold Plated Copper Alloy
Terminals Materials
Silver or Gold Plated Brass

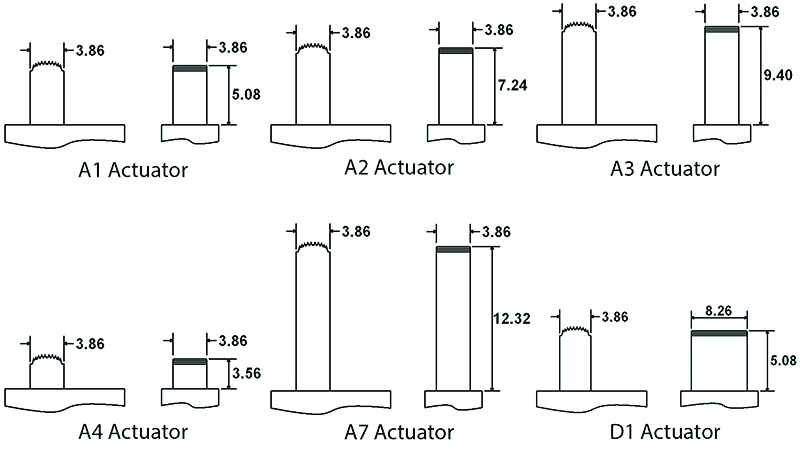

Actuator Lengths
5.08mm, 7.24mm, 9.4mm, 3.6mm

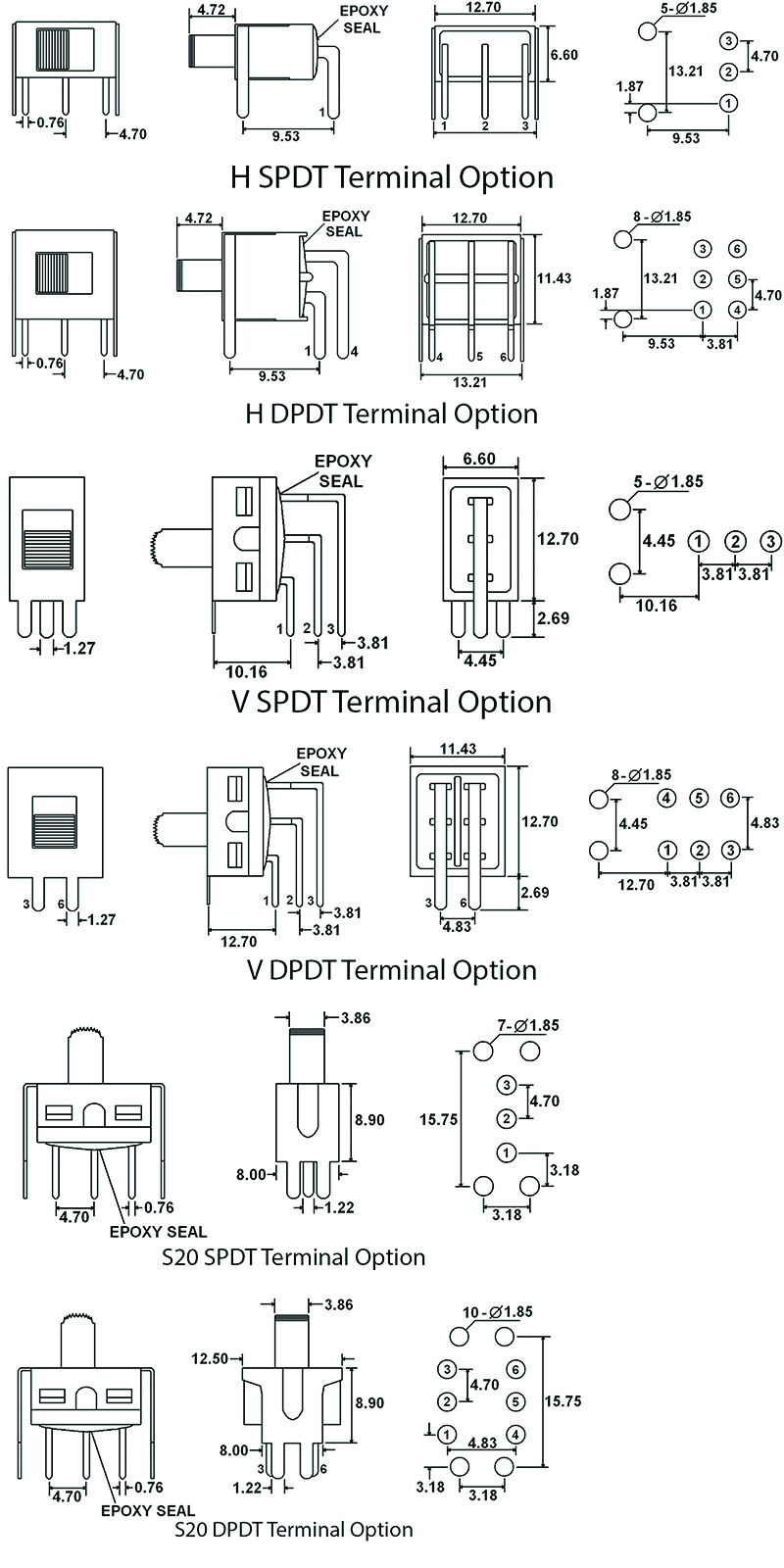

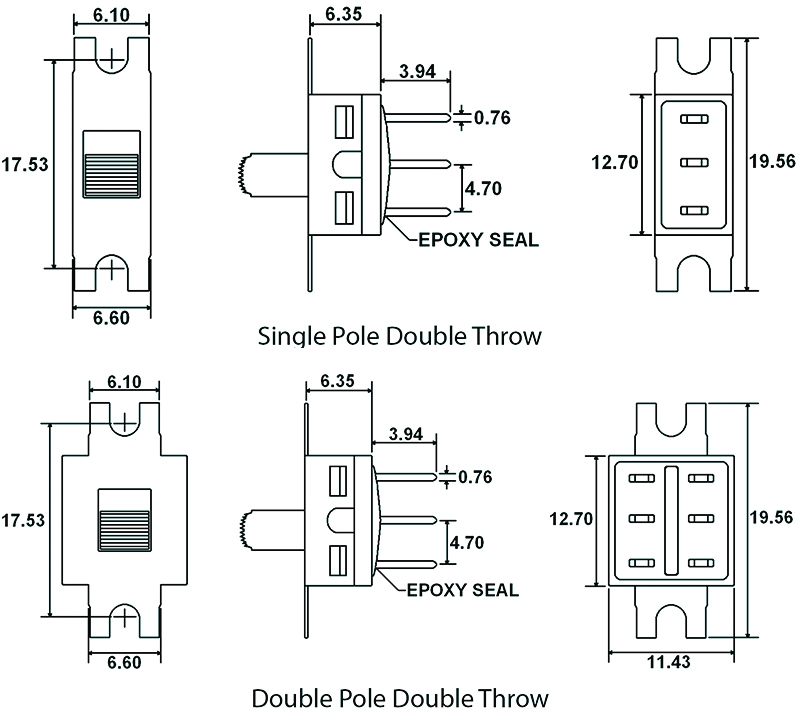

Dimensional Drawing
Schematic
