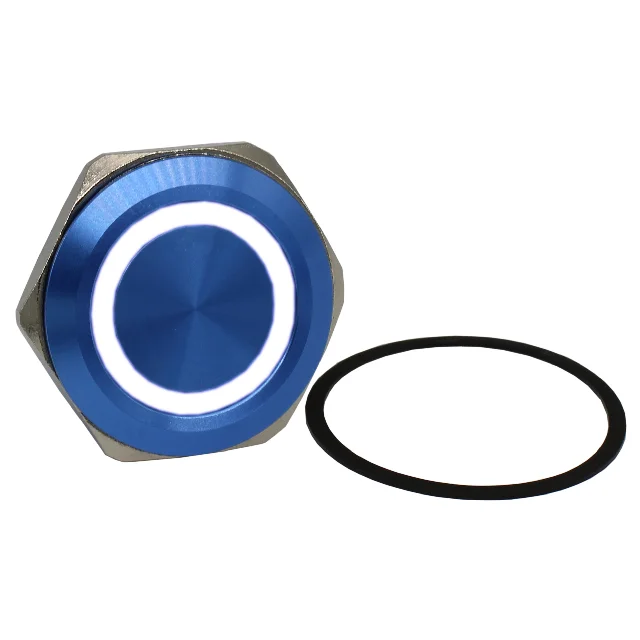

DH40 Series Illuminated Anti-Vandal Push Button 40mm Switch
40mm in size, the IP67 DH40 Series is both vandal and splash resistant. This panel mount switch is heavy-duty and rugged in construction. The DH40 Series is available as momentary or latching in both SPST and DPST. Flush actuator style offer non-illuminated or bi-color ring illumination. Illumination color choices are red, yellow, green, blue, white and orange. LED voltage choices range from 6V to 220V.
Features
Vandal Proof, IP67 Sealing Degree, Non-Illuminated or Ring Illumination, 40mm, Panel Mount
Specification
Electrical Ratings
20A@12VDC, 10A@12VDC, 10A@125VAC, 5A@250VAC
Sealing Degree
IP67, Process Sealed
Number Of Poles
SPDT, DPDT
Body Diameter
40mm
Latching Option
Momentary, Latching
Terminal Options
Solder Lugs
Illumination Options
LED
LED Voltage
6VDC, 12VDC, 24VDC, 110VAC, 220VAC, No internal resistor, No LED
Dimensional Drawing
